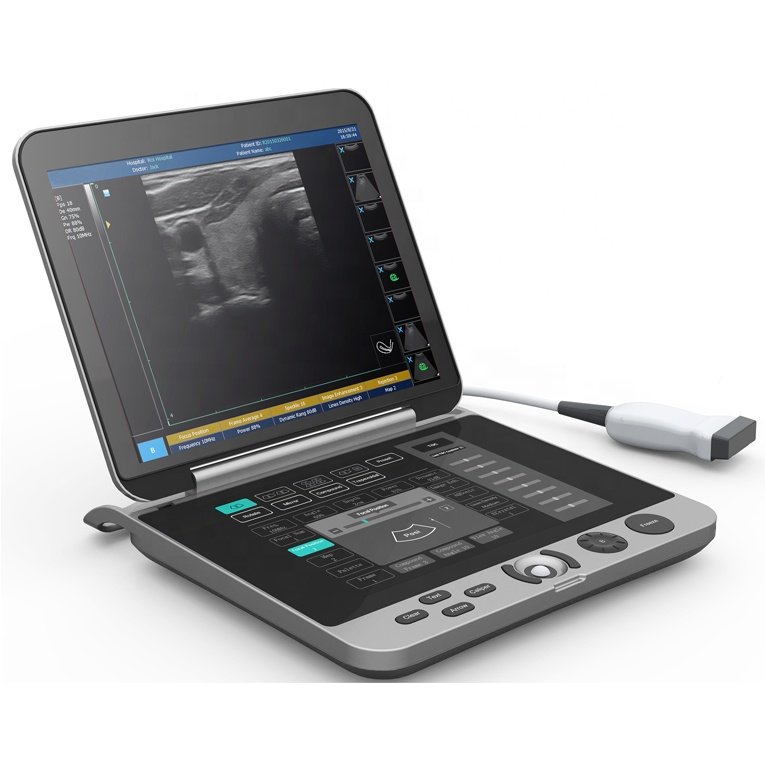

Laptop Ultrasound Machine with Touch Screen Keyboard NEUPU44
£5,970.00£6,950.00 (-14%)
– Compact laptop ultrasound machine with a 12.1-inch LED touch screen.
– Multi-frequency imaging capabilities: B, B+B, 4B, B+M, M, and Compound Imaging.
– Advanced imaging processing with Trapezoid Imaging and THI technology.
– Supports various applications including Abdominal, Obstetrical, Gynecological, Cardiac, and more.
– Intelligent workflow for image archiving and review on hard disk and USB.
– 8-Segment TGC and one-key image optimization for enhanced image quality.
– Equipped with USB, LAN, and HDMI OUT ports for convenient connectivity.
– Runs on a Windows system with multi-language support (English/Chinese).
– Lightweight design with dimensions of 28.5*28*3.5cm for easy portability.
Specifications
System Specifications:
Dimensions 28.5*28*3.5cm
Display 12.1-inch LED (1024*768)
Display Language English/Chinese
Power System operates via AC power
System Windows System(PC)
“Display Modes and
Imaging Processing:”
Multi-frequency imaging “B,B+B,4B,B+M,M,Compound Imaging,
Trapezoid Imaging”
Image processing Multi-frequency probes for 2D imaging modes
9.7-inch touch screen
8-Segment TGC
“AQ Sonic & E Crystal
one-key image optimization
Multiple Beam Formation
THI technology
Full patient database solutions capture and review”
Application
Abdominal, Obstetrical, Gynecological, Cardiac, Small parts, Urological, Vascular, Orthopedics, MSK
Intelligent Workflow Storage/Review:
Image archive on hard disk and USB mobile storage medium, temporary saving in cine memory
1 USB ports
Single-frame image formats: BMP
Multi-frame images formats: AVI
Cine memory capacity(Max.):
Cine memory capacity(Max.)
B mode:1024 frames
M mode:12.5s
Standard Configuration:
12.1-inch LED monitor
One transducer connector
Handle
“1USB port
1 LAN port”
1 HDMI OUT port
Software Update with USB
