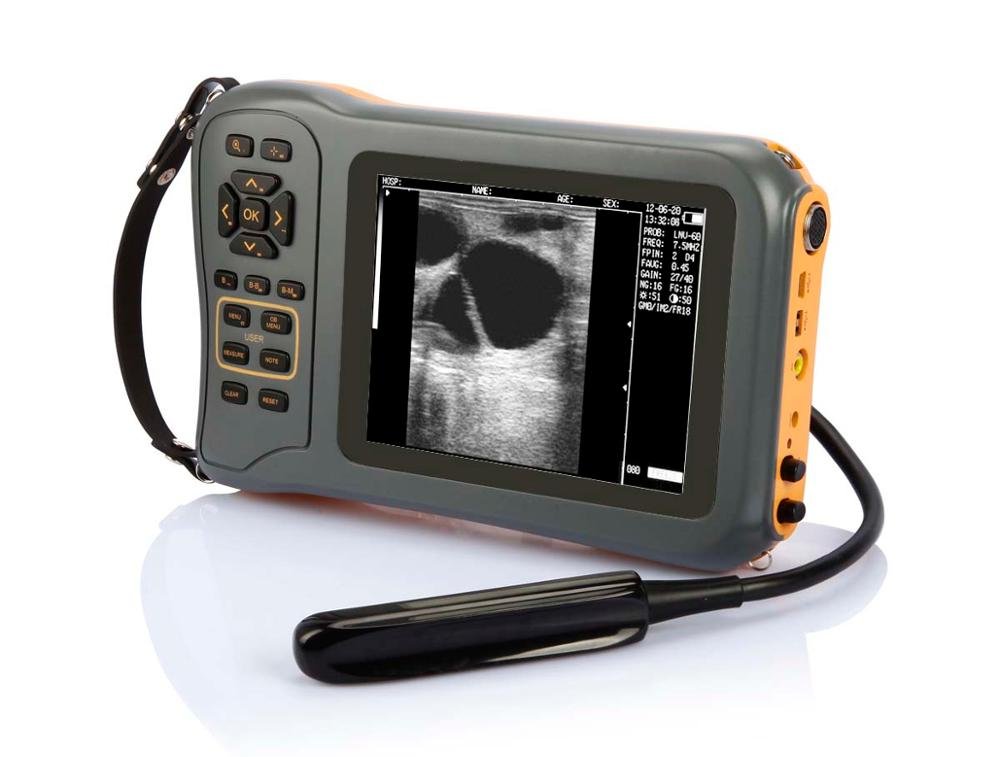

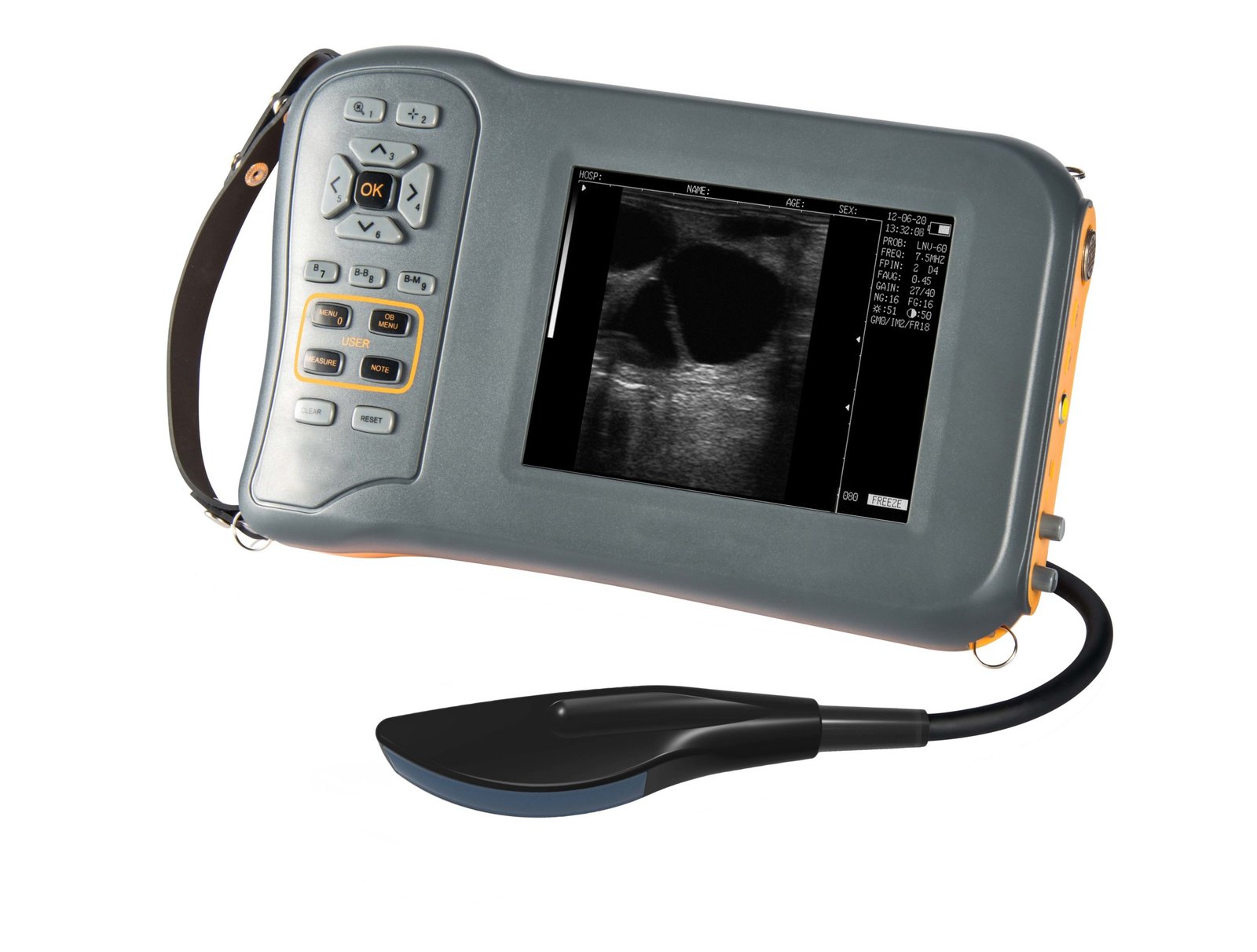

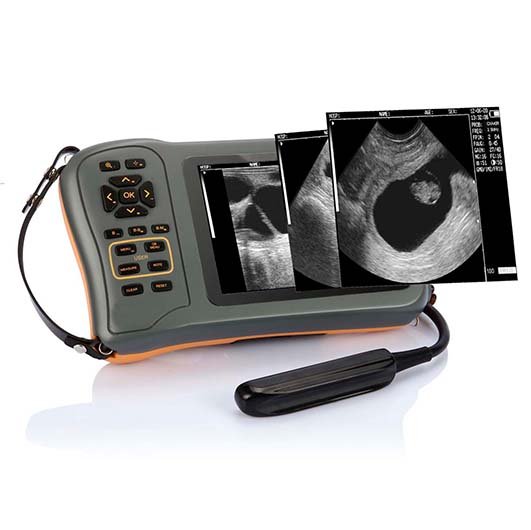

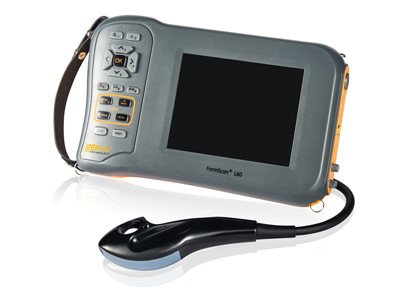

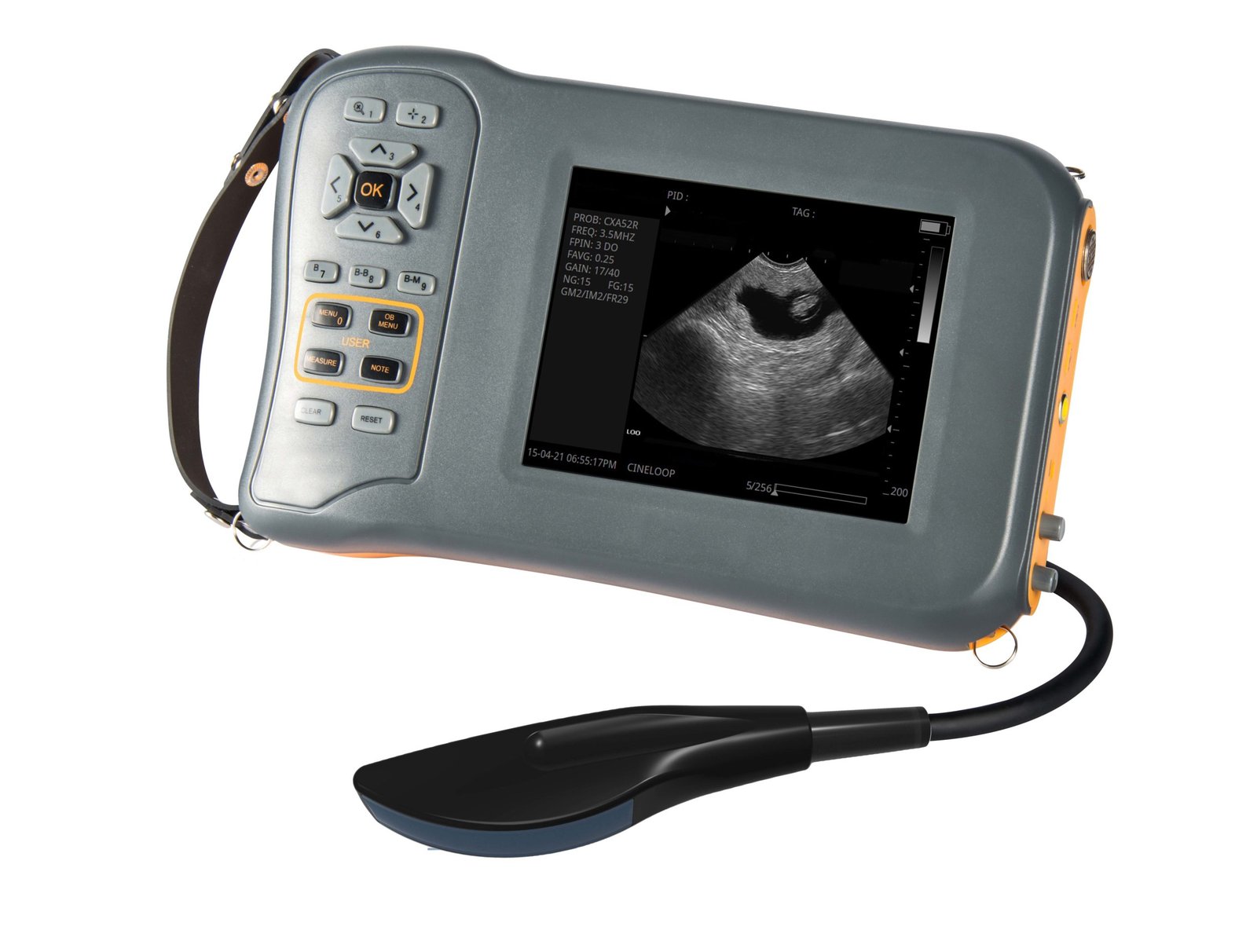

Mini Portable Veterinary Black and White Ultrasound Machine NEUVU42
£2,950.00£3,950.00 (-25%)
– Mini Portable Veterinary Black and White Ultrasound Machine NEUVU42
– Suitable for equine, bovine, sheep, swine, dogs, and cats
– 5.8-inch TFT-LCD monitor with 256 grayscale levels
– Multiple display modes: B, B+B, 4B, B+M, M
– Scanning depth of up to 220mm with 8 adjustable levels
– Lightweight design, weighing ≤650g for easy portability
– Supports measurements for distance, circumference, volume, and heart rate
– Operates in both Chinese and English
– Reports and image processing features available
– Optional probes for various scanning needs including convex and linear arrays
Specification
Application: equine, bovine, sheep, swine, dog, cat, etc.
Display Modes: B/B+B/4B/B+M/M
Scanning Depth: 220mm, 8-adjustable level (image multiplying factor)
Gray Scales: 256
Monitor: 5.8 TFT-LCD
Port: one mouse port/one Video (PALD, NTSC)/one USB 2.0
Weight:≤650g
Measurements: distance, circumference, volume, EF rate, heart rate, time
OB Measurement: GS, BL, HL, SL, USD, HD, BD, CRL, EDD, GA
Operation Interface: Chinese/English
Comments: date & time, hospital, name, age, sex
Report: available
Image Processing (IP): available
Cine-loop: ≥400frames
Conversion: up/down, left/right
Pseudo Color: 3
Histogram: available
Image Smooth:≥4 grade
Gama Correction: available
Probe:
convex (2.5MHz/3.5MHz/5.0MHz)
micro convex (4.5MHz/5.0MHz/5.5MHz)
HF linear (5.5MHz/7.5MHz/8.5MHz)
endo-rectal (5.5MHz/6.5MHz/7.5MHz)
1.Technical Parameters
| Scanning | Electronic linear, electronic convex array |
| Scanning angle | 30-145 degrees |
| Detection depth | 24cm(convex probe) |
| Frequency range | 2.0-10.0 MHZ |
| Probe Configuration |
Standard: 65L50S rectal linear probe (frequency 8.0-5.0MHZ) Optional: 35C60H large convex probe (frequency of 5.0 ~ 3.0MHz) 75L50S linear array (frequency 10.0MHz ~ 5.5M |
| Slice thickness | 35C60H less than 8.0mm |
| Display mode | B, 2B, 4B, B / M, M |
| Cineloop | 450~520, automatic playback and manual playback |
| Edge Enhancement | Adjustable from 0 to 3 grades; |
| Dynamic range | 30 ~ 150dB, stepping of 5dB; |
2. Probe for option:
|
Model |
Type |
Description |
Configuration |
|
65L50S |
Convex array |
with a center frequency of 6.5MHz R=50mm |
Standard |
|
75L50S |
Liner array |
with a center frequency of 7.5MHz L=50mm |
Optional |
|
35C60H |
Liner array |
with a center frequency of 3.5MHz L=50mm |
Optional |
|
50C20H |
Convex array |
with a center frequency of 5.0MHz R=20mm |
Optional |
|
35C60L(Curve probe) |
Convex array |
with a center frequency of 3.5MHz R=50mm |
Optional |
