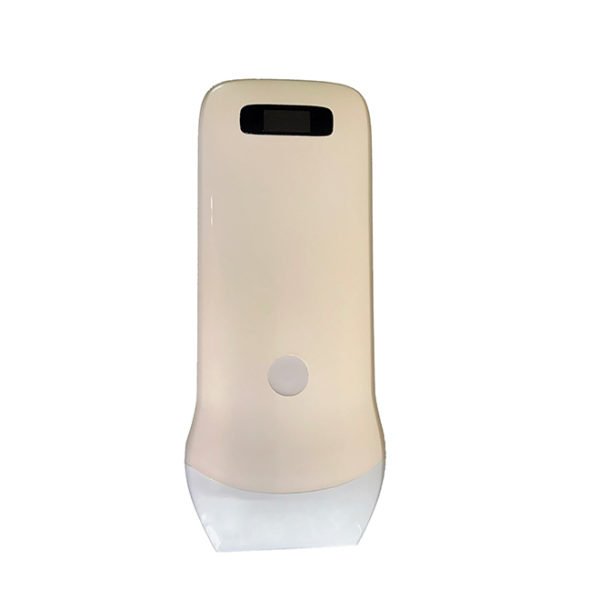

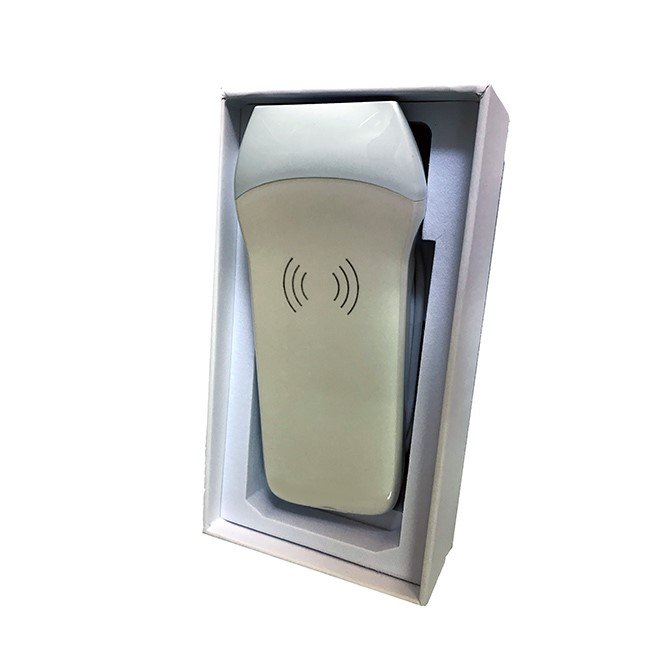

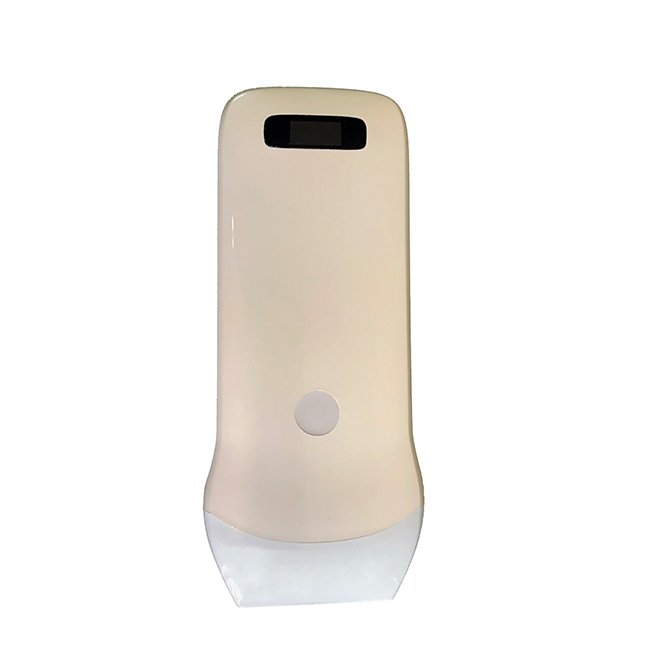

Mini Ultrasound Device Machine NEUPU66
£2,507.50£3,890.00 (-36%)
– Compact and portable Mini Ultrasound Device Machine NEUPU66
– Features linear array sweep scanning system
– Dual frequency options: 7.5/10 MHz with linear probes
– Imaging depth: Convex probe (90-305mm), Linear probe (20-55mm)
– Compatible with Apple iPad mini, iPad Air, iPhone, and Android devices
– Wireless connection via 802.11g WiFi (AP)
– Playback frames available in 100, 200, 500, and 1000 options
– Display modes include B, B/M, color, PW, and PDI
– 256-level grayscale imaging for enhanced detail
– Comprehensive measurement features for obstetrics and various metrics
Mini Ultrasound Device Machine NEUPU66
Compact, portable ultrasound system with dual-frequency linear array scanning. Seamlessly integrates with iPad, iPhone, and Android devices via WiFi for point-of-care imaging with 256-level grayscale detail and comprehensive obstetric measurement capabilities.
Clinical overview
The NEUPU66 is a next-generation portable ultrasound system designed for clinicians requiring high-quality diagnostic imaging in resource-constrained or mobile settings. Its compact form factor and wireless connectivity enable seamless integration into existing clinical workflows, from obstetric assessment to general soft-tissue imaging. The dual-frequency linear array scanning system delivers consistent image quality across a wide range of anatomical depths, while 256-level grayscale rendering ensures diagnostic clarity for subtle pathology detection.
Compatible with ubiquitous mobile platforms (iPad, iPhone, Android), the NEUPU66 eliminates the need for proprietary hardware, reducing capital expenditure and simplifying deployment across multiple clinical sites. Advanced measurement algorithms support obstetric dating (CRL, BPD, GS, FL, HC, AC), distance, area, and circumference calculations—enabling rapid, standardised reporting in high-volume settings.
Key features & surgeon benefits
Multi-Modal Display
- B, B/M, color, PW, and PDI display modes
- 256-level grayscale for enhanced diagnostic detail
- 80-degree field of view for comprehensive anatomy coverage
Seamless Mobile Integration
- 802.11g WiFi (AP) connectivity—no proprietary cables
- Compatible with iPad mini, iPad Air, iPhone, and Android devices
- Playback frames: 100, 200, 500, or 1000 options for flexible review
Cost-Effective Deployment
- Eliminates need for dedicated ultrasound workstations
- Leverages existing mobile device infrastructure
- Compact design reduces storage and transport costs
Comprehensive Obstetric Tools
- GA (CRL), GA (BPD), GA (GS), GA (FL), GA (HC), GA (AC)
- Distance, area, and circumference measurements
- Rapid standardised reporting for high-volume settings
Technical specifications
| Scanning System | Linear array sweep |
|---|---|
| Frequency | 7.5 / 10 MHz (linear probe) |
| Imaging Depth | Convex probe: 90–305 mm; Linear probe: 20–55 mm |
| Host Compatibility | Apple iPad mini, iPad Air, iPhone; Android phones and tablets |
| Wireless Connection | 802.11g WiFi (AP) |
| Throughput | 54 Mbps |
| Field of View | 80 degrees |
| Display Modes | B, B/M, Color, PW, PDI |
| Grayscale Resolution | 256-level imaging |
| Gain Range | 30–105 dB |
| Playback Frames | 100, 200, 500, 1000 (selectable) |
| Language | English |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main Unit | NEUPU66 Ultrasound Transducer Module | 1 |
| Linear Probe | 7.5 / 10 MHz Dual-Frequency Linear Array | 1 |
| Convex Probe | Convex Array Transducer (optional) | As ordered |
| WiFi Adapter | 802.11g Wireless Module | 1 |
| Carrying Case | Protective transport case | 1 |
| Cables & Connectors | Standard USB and power connectors | 1 set |
| Documentation | User manual, quick-start guide, measurement templates | 1 set |
Get in touch for pricing & availability
Contact our sales team to discuss pricing, bulk orders, OEM customisation, and delivery timelines for the NEUPU66. We offer flexible configuration options and comprehensive support for clinical deployment.
