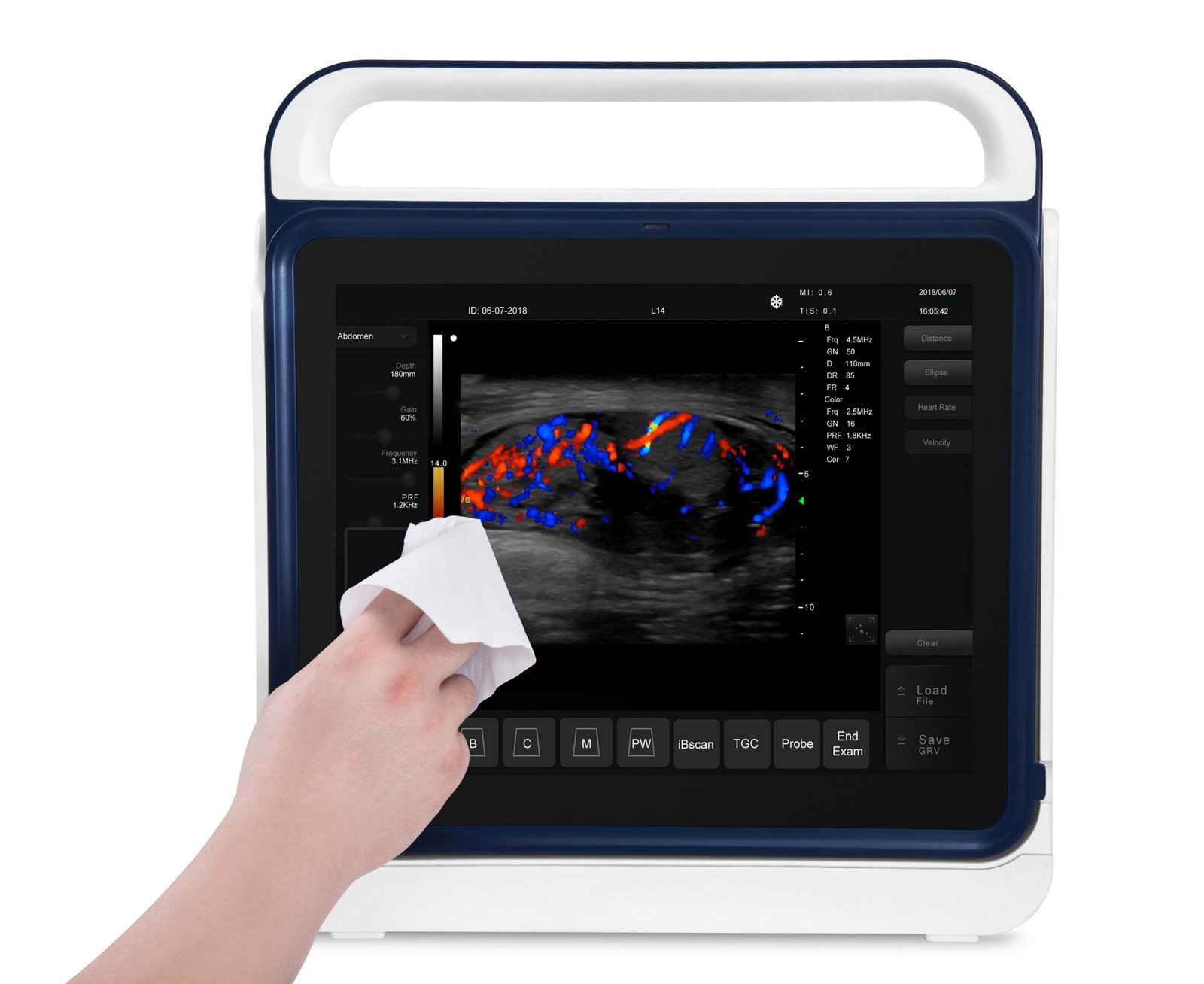

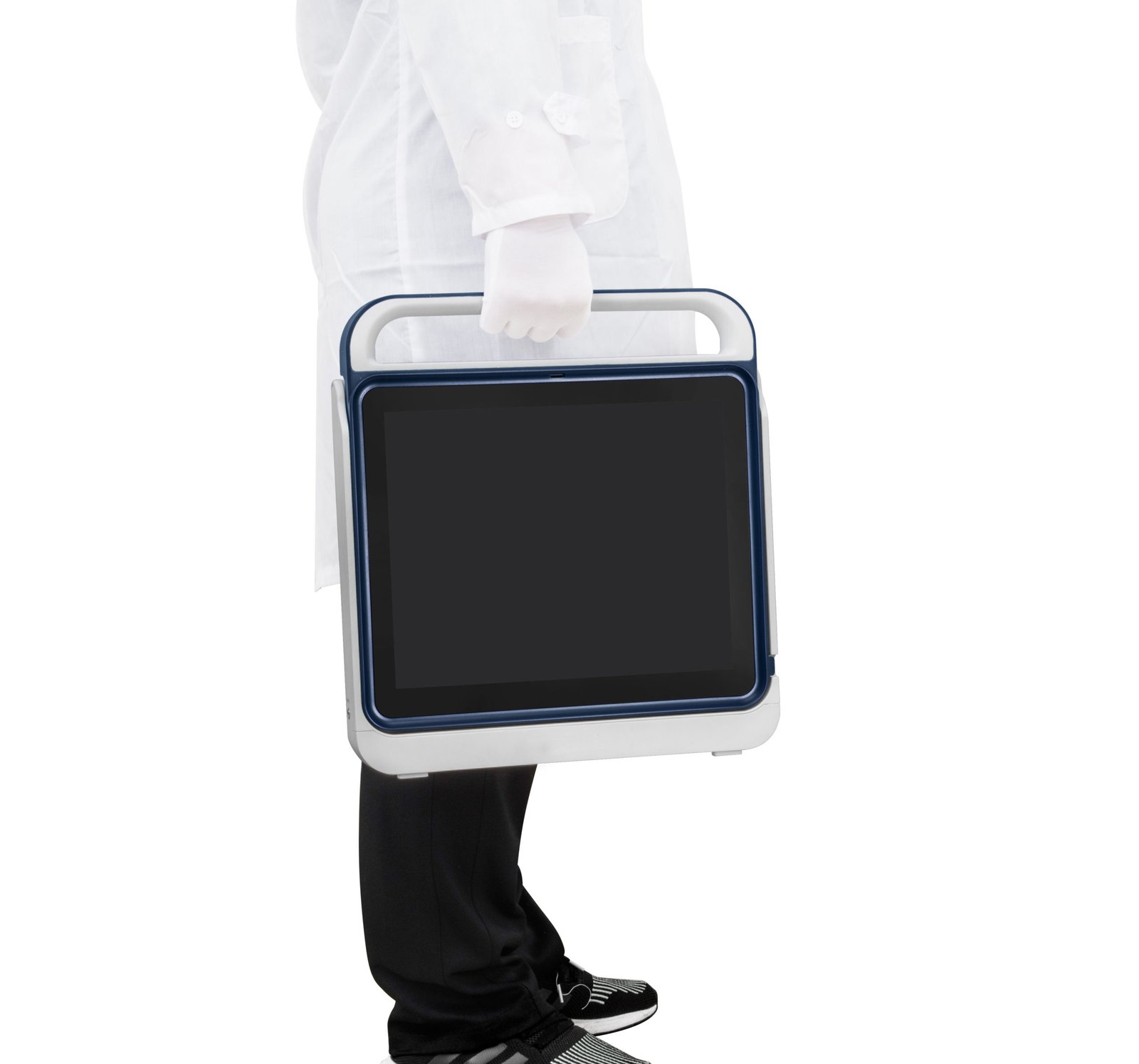

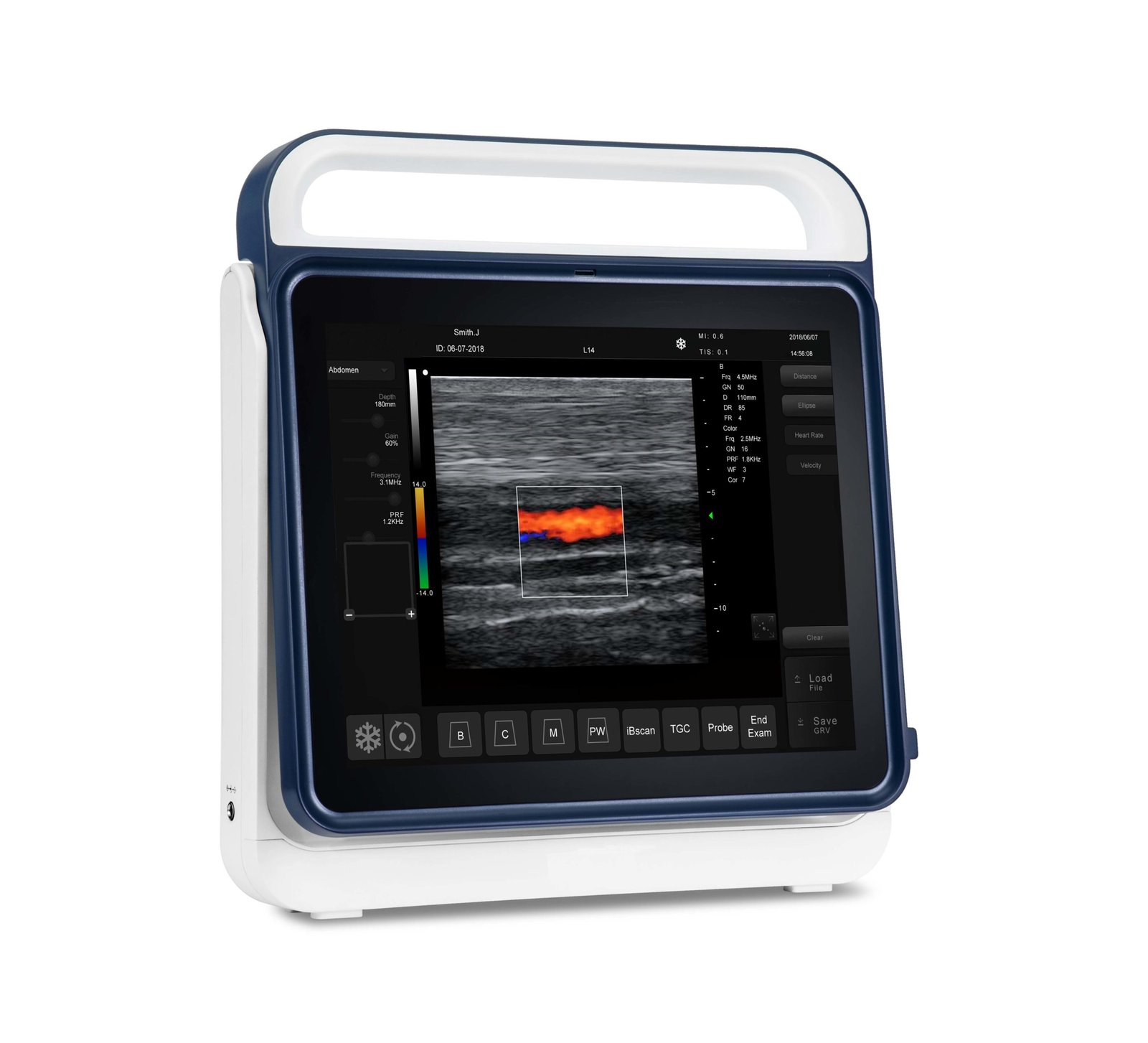

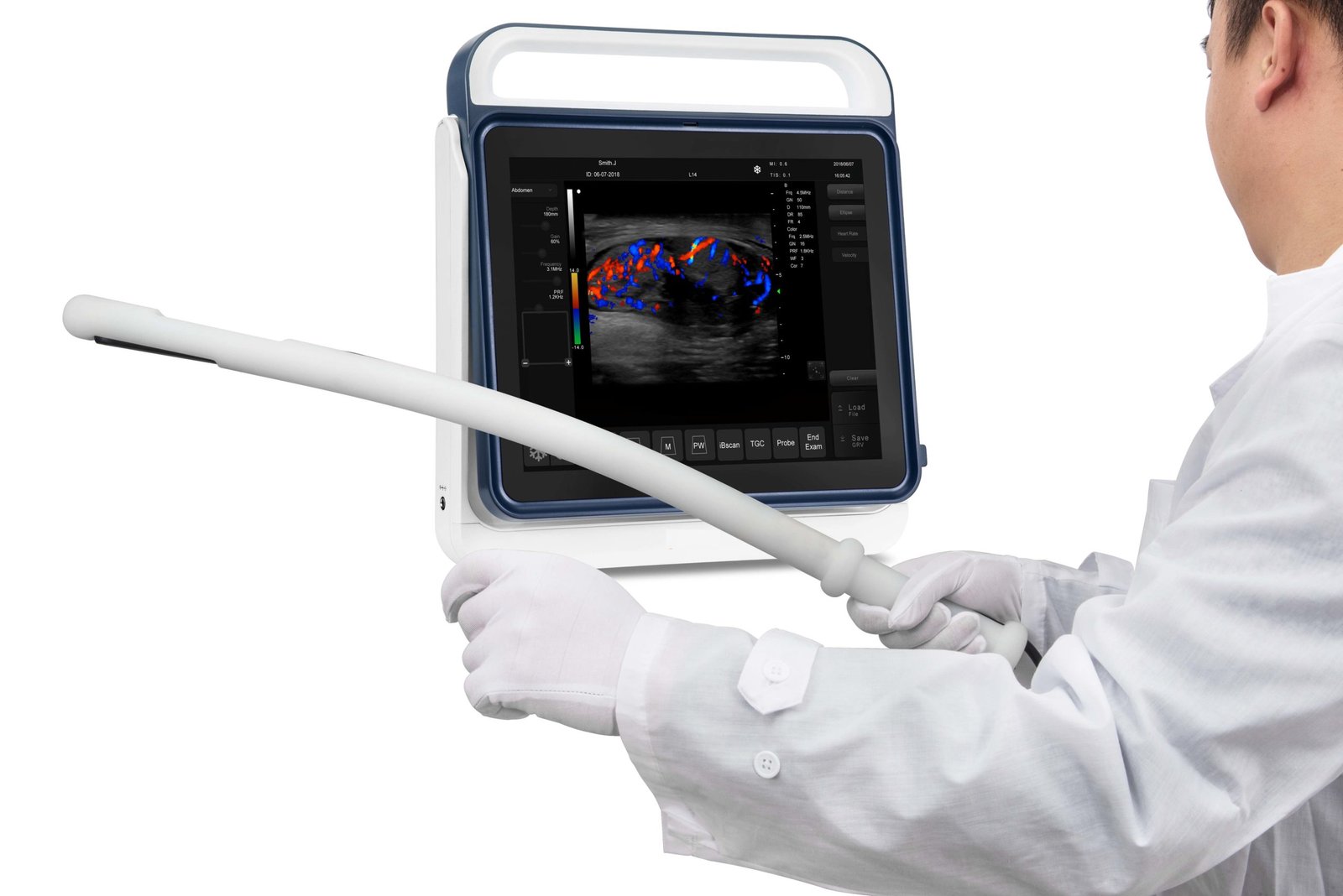

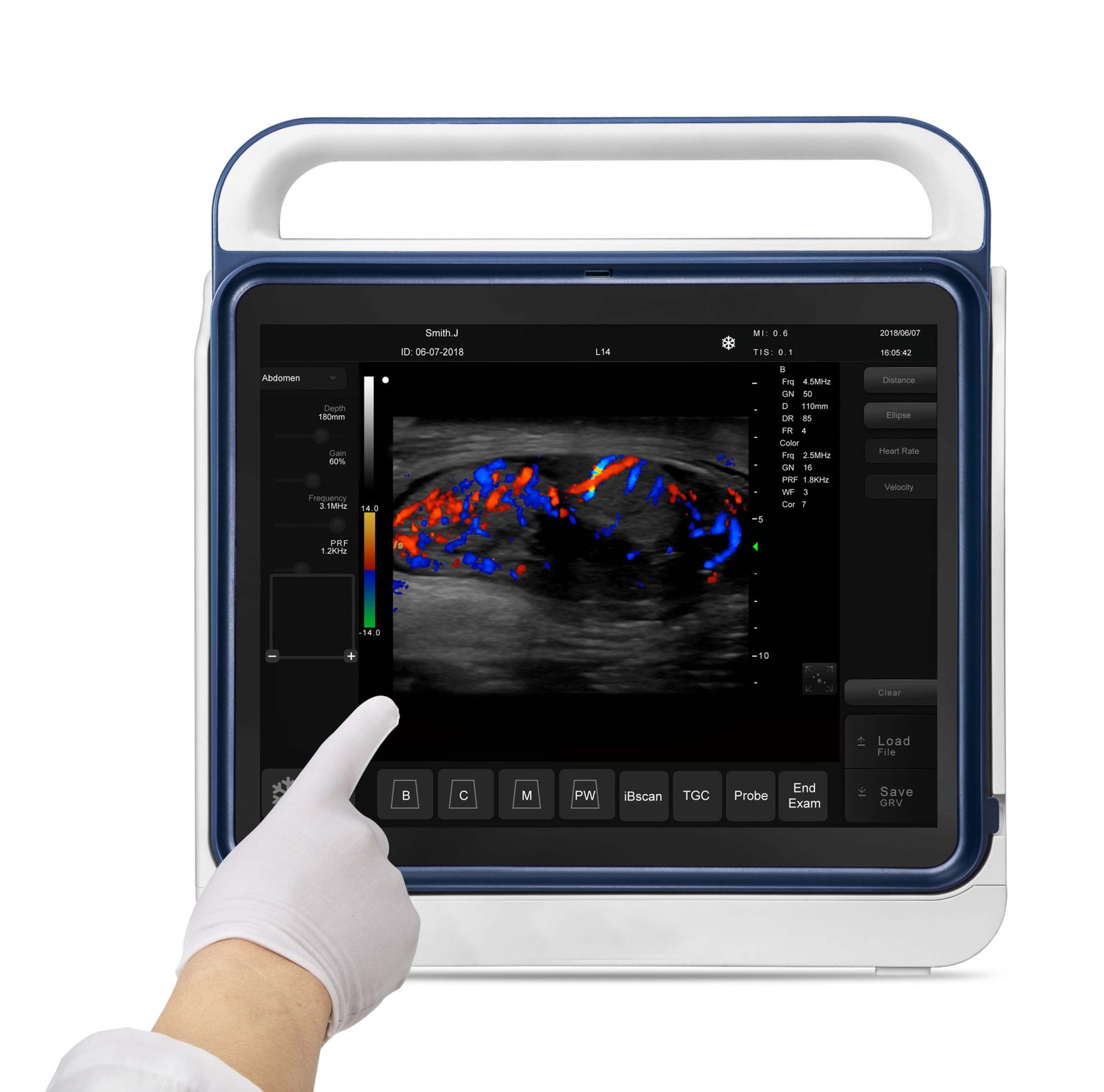

Pad Touch Veterinary Series Ultrasound System Machine NEUVU45
£9,970.00£12,900.00 (-23%)
– Advanced Pad Touch Veterinary Series Ultrasound System (Model: NEUVU45)
– Ideal for equine, large animals, small animals, and marine mammal diagnostics
– High-speed Windows platform with 64-beam imaging technology
– Capable of processing up to 4500 frames per second
– Multiple imaging modes including B/C, B/PW, and B/M
– Supports dual-split display and adjustable timeline formats
– Transducer types: Convex, Linear, and Rectal Arrays
– Frequency range from 2-15 MHz, scanning depth up to 351mm
– Multi-language software support, accommodating various keyboard inputs
– Operating temperature range: 0-40 °C, humidity: 30%-85%

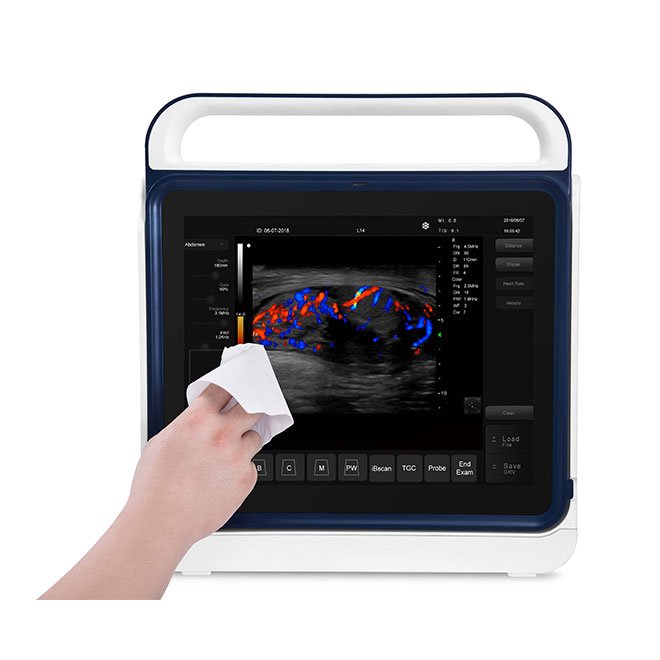

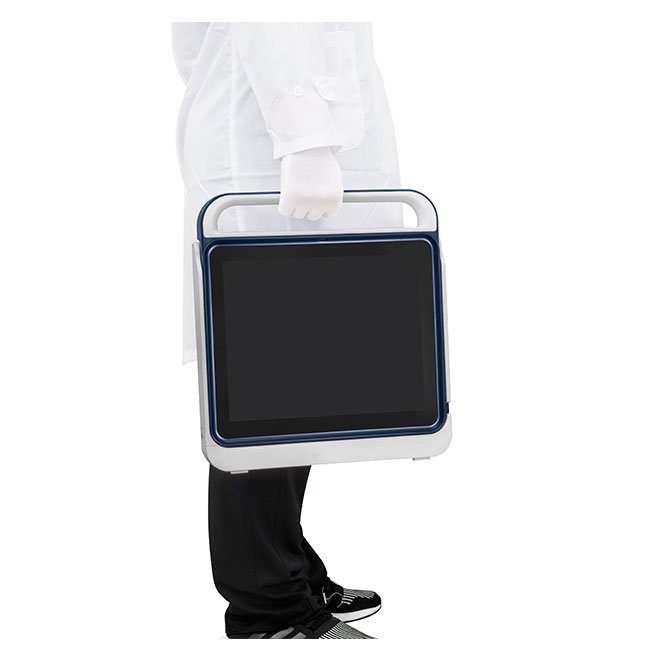

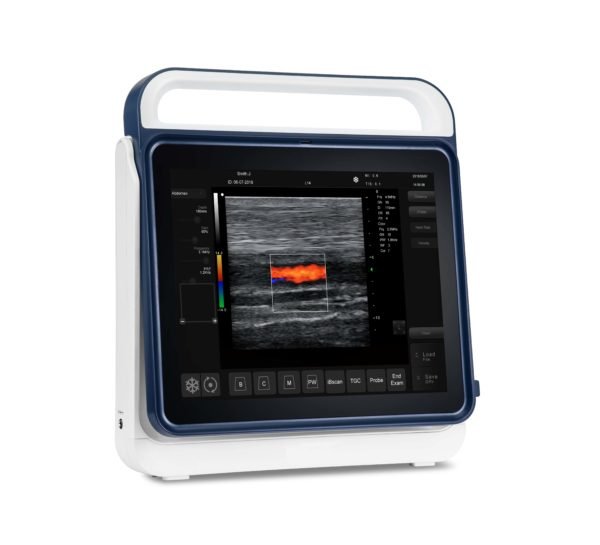

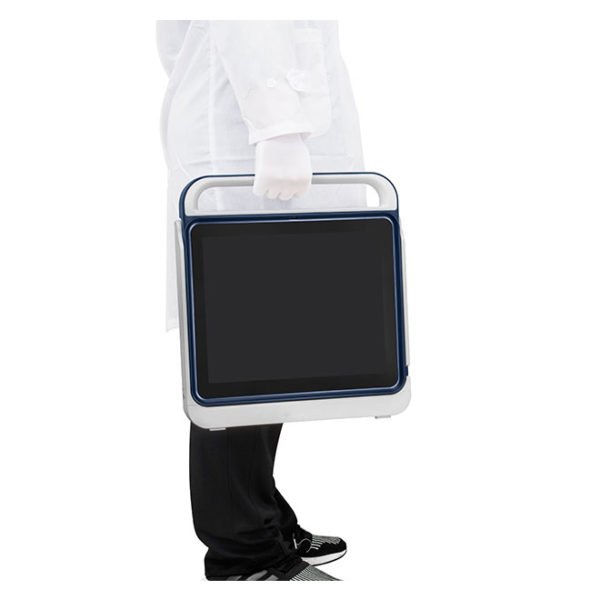

Pad Touch Veterinary Series Ultrasound System Machine
System Overview
Application scenarios:

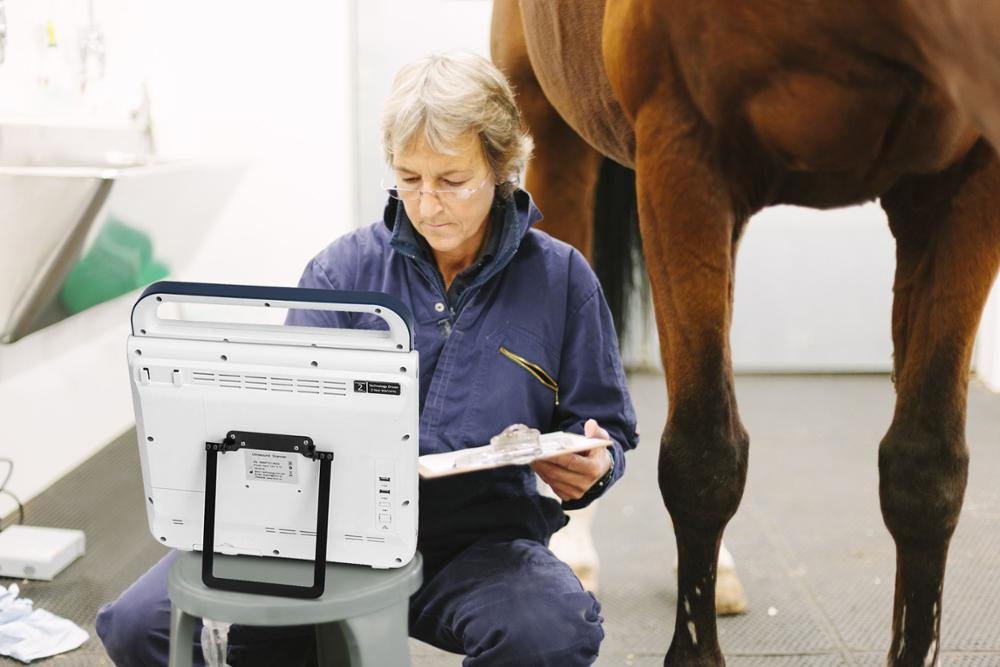

Applicable to equine, large animal, small animal, zoo mammal, and marine mammal medicine body scans, for example, Abdomen, Reproduction, Gynecology, Cardiology ,Small Parts and veterinary clinic & research departments and livestock farm, Zoo, etc.
Ultrasound platform:
Based on Windows high‐speed hardware platform, provides a cutting‐edge 64‐beam imaging, can handle up‐to 4500 frames image per second
B/C/D triplex mode
Dual live: B/C,B/PW,B/M
Imaging Modes:
Dual‐split: B/C, B/M, B/PW
Adjustable time line display format (1:1, 1:2, Full)
Gray scale levels: 256
Transducer Type: Convex Array, Linear Array, Rectal Array
Transducer frequency: 2‐15 Mhz
Transducer connector: one(1)active transducer connector ports/support extend extension transducer connector(reserved)
Scanning depth: up to 351mm
Language Software: English,Spanish,Russian,Italian,Deutsch,French,Italian,Korean,Magyar,Polish,Romana,Chinese,and more(ODM support!)
Keyboard Input: English, Spanish, and more(ODM support!)
Operating Environment:
Temperature: 0‐40 °C
Humidity: 30%‐85% (non‐condensing)
Pressure: 700hPa‐1060hPa
Storage and Transport:
Temperature: ‐20‐55 °C
Humidity: 30%‐95%(non‐condensing)
Pressure: 700hPa‐1060hPa
| Dual split | B/C, B/M, B/PW |
| Adjustable time line display format | (1:1, 1:2, Full) |
| Gray scalelevels | 256 |
| Transducer Type | Convex Array,Linear Array,Rectal Array |
| Transducer frequency | 2 15 Mhz |
| Transducer connector | one(1)activetransducer connector ports/support extendextension transducer connector(reserved) |
| Scanning depth | up to 351mm |
