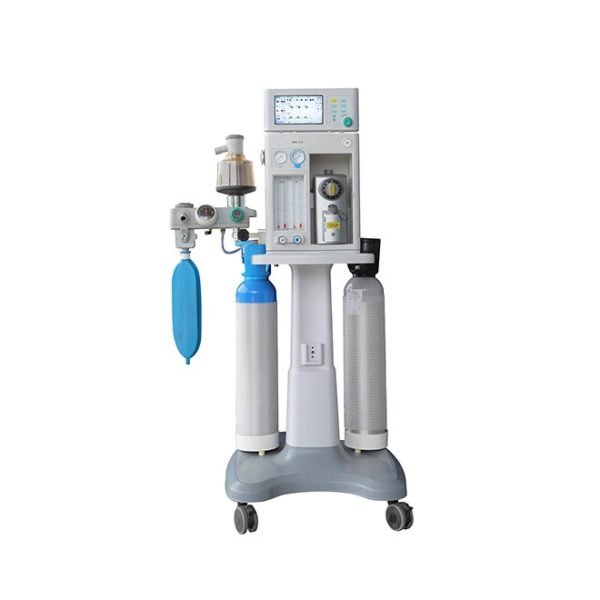

Portable Anesthesia System NEUGA20
£19,990.00£22,990.00 (-13%)
– Portable Anesthesia System NEUGA20, ideal for clinical and emergency use.
– Compact dimensions: 700*800*870mm, weighs 17.5KG (net), 28KG (gross).
– Operates in anesthesiology, gynecology, obstetrics, stomatology, and emergency departments.
– Gas-driven with dual gas source: Oxygen and N2O.
– Supports child and adult patients with tidal volume range of 0-1500ml.
– Compatible with multiple vaporizers: Enflurane, Isoflurane, Halothane, Sevoflurane.
– Features interlock hypoxic guard ensuring oxygen concentration >21%.
– Modes include semi-open, semi-closed, or closed systems.
– User-friendly operating panel in English with manual included.
– Available in a convenient trolley for easy mobility.
Specifications
700*800*870mm, NW: 17.5KG, GW: 28KG.
The ideal portable anesthesia (analgesia) system support an upgrading not only for super clinical field, but also applicable for anesthesiology, gynaecology and obstetrics, stomatology and emergency department. It gives a safe, accurate and convenient support for application combination which will assist with fast response to life care.
Operating Panel: English (Standard)
Drive: Gas driven
Application: Applied for child and adult.
Available in trolley
Gas source: Oxygen, N2O
Tidal volume: 0～1500ml
Vaporizer: Enflurane, Isoflurane, Halothane, Sevoflurane
Concentration: 0~5% (0~8% for sevoflurane)
Flow meter: four tubes 0.2~10L/min (with interlock hypoxic guard ensuring the
oxygen concentration>21%)
Mode: Semi-open, semi-closed or closed system
APL valve: <6kpa
Gas supply: O2/N2O 0.28Mpa~0.6Mpa
O2 flush: 25~75L/min
CO2 absorber canister: 0.8L
Working mode: Manual
Basic configuration requirement: Main body 1 Unit, disposable accessories 1 set
Net Weight: 22Kg
Dimensions: 500mm x 460mm x 320mm (L x H x W).
Reserve Condition: Temperature: -10~40degree, Relative humidity<90%
Working condition: Temperature: 5~40 degree. Relative humidity< 80%
User manual: English (standard)
