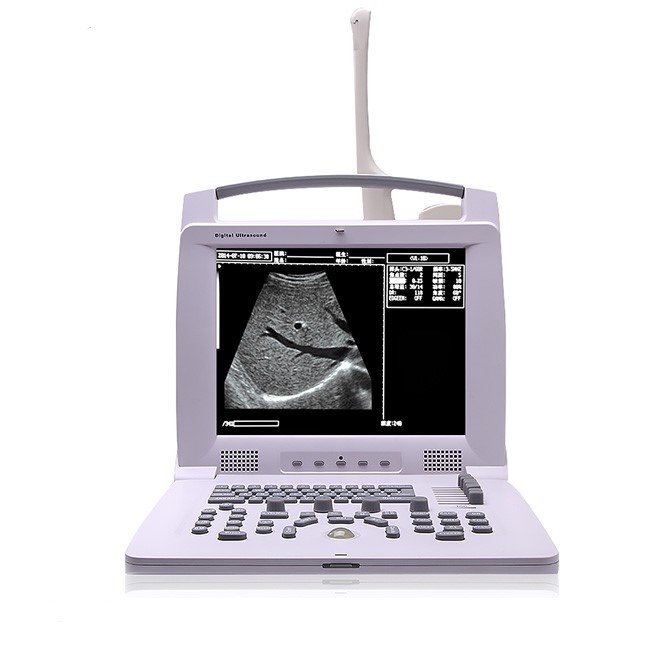

Portable Ultrasound Scanner NEUPU49
£2,371.50£2,990.00 (-21%)
– High-resolution portable ultrasound scanner
– Real-time dynamic image processing technologies
– 12″ imported LCD monitor for clear display
– Supports multiple probe types: convex, linear, trans-vaginal
– Adjustable scan depth from 40mm to 240mm
– Image storage capacity of up to 32 frames
– 256 levels of grayscale for enhanced image quality
– Variety of measurement functions including distance and volume
– Compact and lightweight design for easy portability
– Standard includes charger, gel, and user manual
Specifications
Description:
This equipment is convex linear ultrasound scanning diagnostic system with high resolution.
It applies micro-computer control and digital scan converter (DSC), digital beam-forming(DBF),
real time dynamic aperture (RDA),real time dynamic receiving apodization, real time dynamic receiving focusing(DRF),
digital frequency scan (DFS),8 segments digital TGC, frame correlation technologies to endue its image with clarity, stability and high resolution.
Features:
For real-time picture uploading to PC;
2- probe connectors;
Monitor: imported 12 ” LCD;
Probe elements : 96;
Power Supply: AV220V±22V, 50MHz±1MHz.
| Probe | Standard | Optional | |||
| 3.5MHz convex probe | 7.5MHz linear probe | 6.5MHz trans-vaginal probe | |||
| Probe frequency | 2.5Mhz,3.5Mhz,5.0Mhz | 6.5Mhz,7.5Mhz,8.5Mhz | 5.5Mhz,6.5Mhz,7.5Mhz | ||
| Display depth (mm) | 240 (max),16 levels adjustable | ||||
| Max detect depth (mm) | ≥160 | ≥80 | ≥60 | ||
| Resolution (mm) | Lateral | ≤2 (depth≤80) ≤3 (80<depth≤130) |
≤1 (depth≤60) |
≤1 (depth≤40) |
|
| Axial | ≤2 (depth≤80) ≤3 (80<depth≤130) |
≤1 (depth≤60) |
≤1 (depth≤40) |
||
| Blind zone(mm) | ≤5 | ≤3 | ≤7 | ||
| Geometric position precision | Horizontal | ≤15 | ≤5 | ≤10 | |
| Vertical | ≤10 | ≤5 | ≤5 | ||
| Monitor size | 12 inch | ||||
| Display mode | B、B+B、B+M、M、4B | ||||
| Image gray scale | 256 level | ||||
| Cine loop | 809 frame (Max) | ||||
| Image storage | 32 frames | ||||
| Scan angle | Adjustable | ||||
| Scan depth | 40mm-240mm | ||||
| Acoustic power | 2 steps | ||||
| Dynamic range | 100dB-130dB | ||||
| Image flip | Up/down, left/right, black/white | ||||
| Focus position | Adjustable | ||||
| Focal space | 5 level | ||||
| Measurement | Distance, circumference, area, volume, heart rate. GA,FW,EDD | ||||
| Notation | Date, time, name. sex, age, doctor, hospital name. Full screen words edit. | ||||
| Output report | 2 type | ||||
| Posture mark | ≥40 | ||||
| Video output | PAL-D, VGA | ||||
