Sonoscape 4D Scan Doppler Ultrasound Machine P50
– Advanced 4D Doppler ultrasound technology for superior imaging.
– Enhanced signal transmission for improved sensitivity and accuracy.
– Versatile with multiple transducer options for varied diagnostic needs.
– Ergonomic design featuring adjustable touch screen and control panel.
– High-resolution 21.5″ LED monitor and 12.1″ touch screen.
– Built-in battery and wireless Wi-Fi connectivity for flexibility.
– Comprehensive imaging modes including 2D, 3D, and Doppler options.
– Integrated software for automated measurements and enhanced diagnostics.
– DICOM 3.0 compatibility for seamless data management and sharing.
Sonoscape 4D Scan Doppler Ultrasound Machine P50
Advanced 4D Doppler ultrasound technology delivering superior imaging across diverse clinical applications. The P50 combines enhanced signal transmission, multiple transducer options, and ergonomic design with comprehensive imaging modes and DICOM 3.0 compatibility for seamless diagnostic workflow.
Clinical overview
The Sonoscape P50 represents the latest generation in ultrasound platform technology, delivering enhanced flexibility and diagnostic intelligence. Empowered by SonoScape’s advanced architecture, the P50 improves signal transmission and reception processing, resulting in higher sensitivity and more accurate echo detection across all clinical applications.
With consistent quality performance across diverse diagnostic needs, the P50 enlarges diagnostic capacity through advanced imaging architecture and innovative probe technologies. The system is engineered to provide confident diagnostic experiences in general ultrasound, cardiology, obstetrics, gynecology, abdominal, vascular, and musculoskeletal imaging.
Key features & surgeon benefits
Multi-Technology Platform
- C-Field Beam technology for enhanced penetration
- μ-Scan speckle reduction for clearer 2D/3D imaging
- Adaptive Multi-beam Imaging for superior resolution
- Dynamic Color for improved flow visualization
- Single Crystal Transducers for precision diagnostics
Ergonomic & Flexible Design

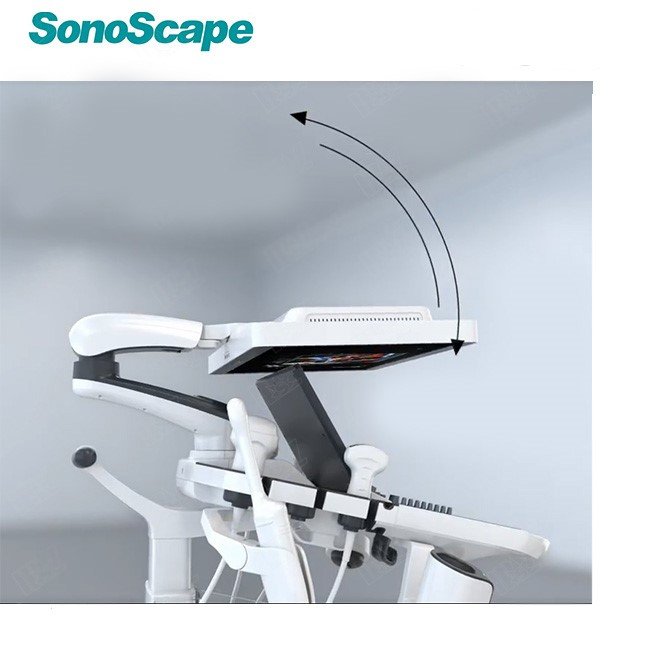

- Adjustable touch screen for optimal positioning

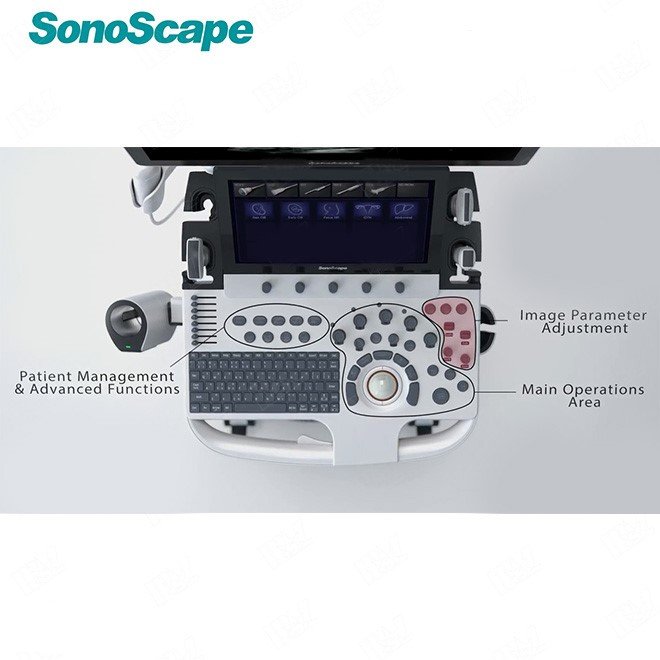

- Rotatable and height-adjustable control panel
- LED monitor with articulated arm for versatile viewing
- Built-in battery for portable operation
- Wireless Wi-Fi connectivity for seamless data transfer
Full Diagnostic Capability
- 2D, 3D, and 4D imaging modes
- B-mode (2B & 4B), M-mode, THI, CFM, PDI, PW, HPRF, CW
- Pulse Inversion Harmonic Imaging for contrast studies
- Real-time 2D and Color Doppler Panoramic Imaging
- Freehand 3D and Static 3D acquisition
Intelligent Measurement Tools
- Auto Volume Calculation (AVC) for follicle assessment
- Auto NT, Auto IMT, Auto EF for cardiac measurements
- Tissue Doppler Imaging and Color M-mode analysis
- VIS-Needle visualization enhancement for interventional procedures
- Stress Echo capability for advanced cardiac assessment
Technical specifications
| Indications | General ultrasound, cardiology, obstetrics, gynecology, abdominal, vascular, musculoskeletal imaging |
|---|---|

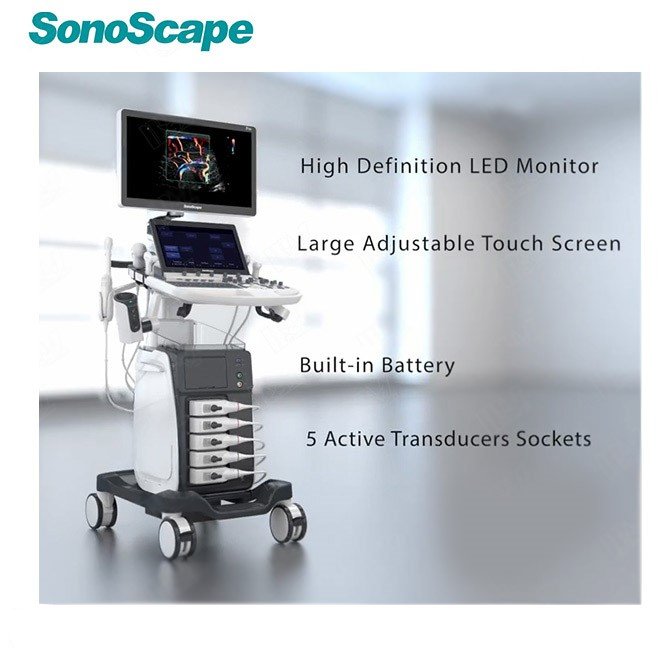

| Display | 21.5″ High Resolution LED color monitor; 12.1″ High Resolution Touch Screen |
| Transducers | Five standard transducer connectors; one CW transducer connector; multiple probe options available |
| Connectivity | Wireless Wi-Fi; DVD-RW; USB 3.0; 500 GB Hard Disk; ECG Module |
| Imaging Modes | B (2B & 4B), M, THI, CFM, PDI, DirPDI, PW, HPRF, CW, 3D/4D, Panoramic |
| Power | Built-in rechargeable battery; AC mains operation |
| DICOM Compliance | DICOM 3.0: Store, C-Store, Worklist, MPPS, Print, SR, Q&R |
| Warranty | 2 Year Manufacturer Warranty |
Standard system composition
| Component | Description | Qty |
|---|---|---|
| P50 Main Unit | Complete ultrasound system with integrated electronics | 1 |
| LED Monitor | 21.5″ High Resolution LED color display with articulated arm | 1 |
| Touch Screen | 12.1″ High Resolution Touch Screen control interface | 1 |
| Transducer Connectors | Standard connectors for probe attachment | 5 |
| CW Transducer Connector | Continuous Wave transducer connector | 1 |

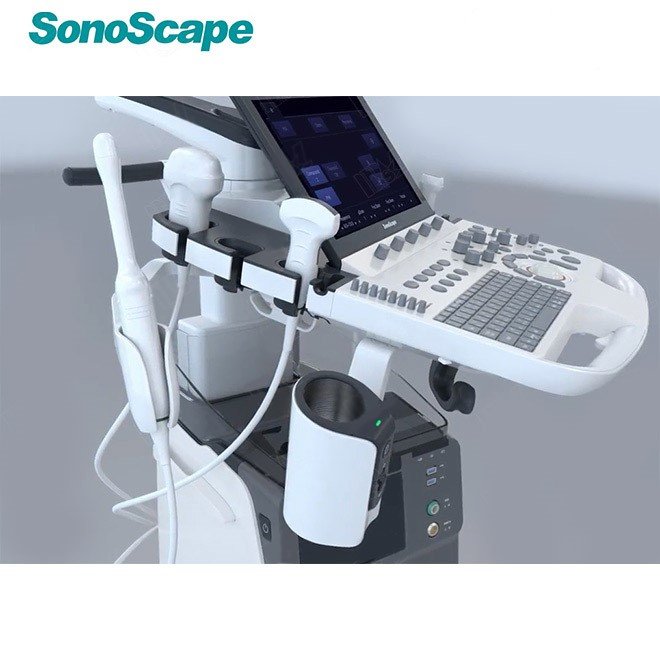

| Endocavity Probe Holder | Secure holder for endocavity transducers | 1 |
| Storage & Connectivity | DVD-RW, USB 3.0, 500 GB Hard Disk | 1 |
| ECG Module | Integrated electrocardiography module for cardiac imaging | 1 |
| Gel Warmer | Integrated gel warming system | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss the Sonoscape P50 system, available transducer options, and customised configurations for your clinical setting. We provide comprehensive support, training, and service to ensure optimal system performance.
