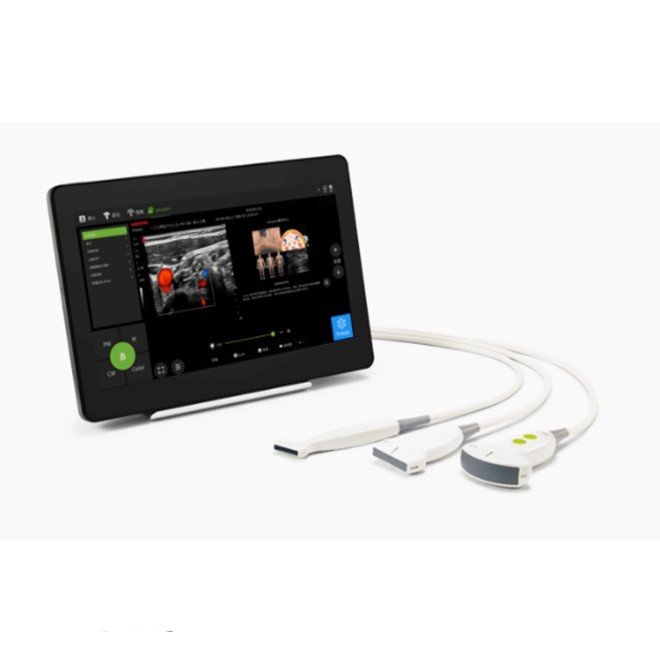

Tablet Ultrasound NEUCU58
– Advanced Tablet Ultrasound Unit: NEUCU58 delivers specialized functionality for musculoskeletal and pain management.
– Lightweight and Smart Design: Ergonomically designed for convenience and ease of use in various settings.
– 13.3-Inch Touch Screen: Features a sensitive capacitive touch display, adjustable for horizontal or vertical use.
– Enhanced Imaging Quality: Achieves up to 5000 frames per second with 64-beam processing for exceptional detail.
– wiNeedle Technology: Automatically identifies and visualizes needles for improved accuracy during procedures.
– Dedicated Imaging Settings: Customizable for pain management, anesthesia, and musculoskeletal applications.
– Versatile Transducer Range: Covers a full spectrum of patients, from large adults to pediatrics, for comprehensive use.
– Educational Support: Includes the wiLearn Education Center for enhanced training and skill development.
– Easy Hygiene Maintenance: Supports surface liquid disinfection for optimal sanitation.
– Built-In Remote Control: Simplifies operation, enhancing the user experience during examinations.
Tablet Ultrasound NEUCU58
Advanced tablet-based ultrasound platform engineered for musculoskeletal imaging, pain management, and interventional procedures. Delivers exceptional image quality with intelligent needle visualization and comprehensive clinical workflow optimization.
Clinical overview
The NEUCU58 is a specialized ultrasound platform purpose-built for musculoskeletal imaging, pain management, and interventional procedures. Its lightweight, ergonomic design and intelligent workflow optimization deliver efficient, accurate diagnostics and guidance across diverse clinical settings. The system combines advanced imaging technology with intuitive controls, enabling clinicians to achieve diagnostic confidence while maintaining procedural efficiency.
Built on the Holo platform architecture, the NEUCU58 processes 64-beam data at up to 5000 frames per second, providing exceptional tissue detail and real-time visualization. The integrated wiNeedle intelligent needle visualization technology automatically identifies and enhances needle display, significantly improving procedural accuracy and safety during interventional techniques.
Key features & surgeon benefits
Superior Detail & Clarity
- 64-beam processing with 5000 fps frame rate
- Optimized bone, muscle, and nerve visualization
- Fine-tuned imaging settings for MSK and pain management
Intelligent Needle Guidance
- wiNeedle automatic needle recognition and enhancement
- Perpendicular beam steering for optimal needle visualization
- Dedicated probe buttons with function name display

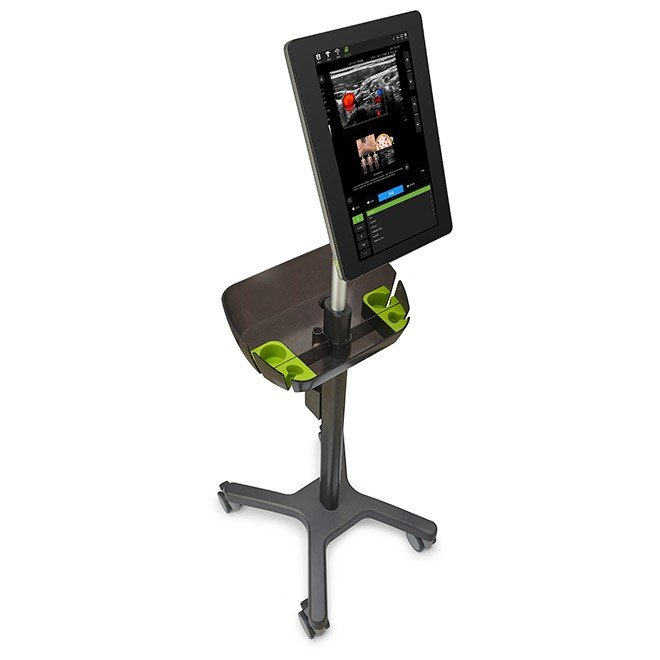

Flexible & Portable Design
- 13.3-inch capacitive touch display, horizontal or vertical
- Height-adjustable stand for optimal positioning
- Lightweight case for convenient transport
Comprehensive Training Platform
- wiLearn Education Center with side-by-side comparison
- Coverage of pain management, anesthesia, and MSK protocols
- Lifetime clinical support and ongoing education resources
Technical specifications
| Indications | Musculoskeletal imaging, pain management, anesthesia guidance, physical therapy assessment, vascular imaging |
|---|---|
| Display | 13.3-inch capacitive touch screen, horizontal or vertical orientation, height adjustable |
| Processing | 64-beam architecture, up to 5000 frames per second |
| Transducer Range | Full spectrum coverage from pediatric to large adult patients |
| Specialized Features | wiNeedle intelligent needle visualization, dedicated imaging settings, remote control operation |
| Hygiene & Maintenance | Surface liquid disinfection compatible |
| Warranty | 2 Year Manufacturer Warranty |
Standard system components
| Component | Description | Qty |
|---|---|---|
| Tablet Ultrasound Unit | 13.3-inch display, 64-beam processor, wiNeedle technology | 1 |
| Hockey Stick Probe | High-frequency, lightweight design for small joints and superficial imaging | 1 |
| Remote Control | Wireless operation for enhanced workflow control | 1 |
| Height-Adjustable Stand | Ergonomic positioning for horizontal or vertical display | 1 |
| wiLearn Education Center | Integrated training platform with clinical protocols and case comparisons | Included |
