Ultrasound Bone Densitometer NEUBD07
£13,515.00£17,900.00 (-24%)
– Advanced ultrasound technology for non-invasive bone density measurement.
– Quick measurement time of ≤ 25 seconds for efficient diagnostics.
– Built-in computer system with 10.1-inch touch screen for easy operation.
– Automatic calibration and temperature compensation for accurate results.
– Includes a built-in thermal printer for immediate report generation.
– Diagnostic parameters include BUA, OI, T value, Z value, and more.
– Supports multiple user databases from Asia, Europe, the Middle East, and Africa.
– Dual USB interface for data output and compatibility with PACS networks.
– Designed for use in various medical and physical examination institutions.
– Compact and space-saving design, eliminating the need for external devices.

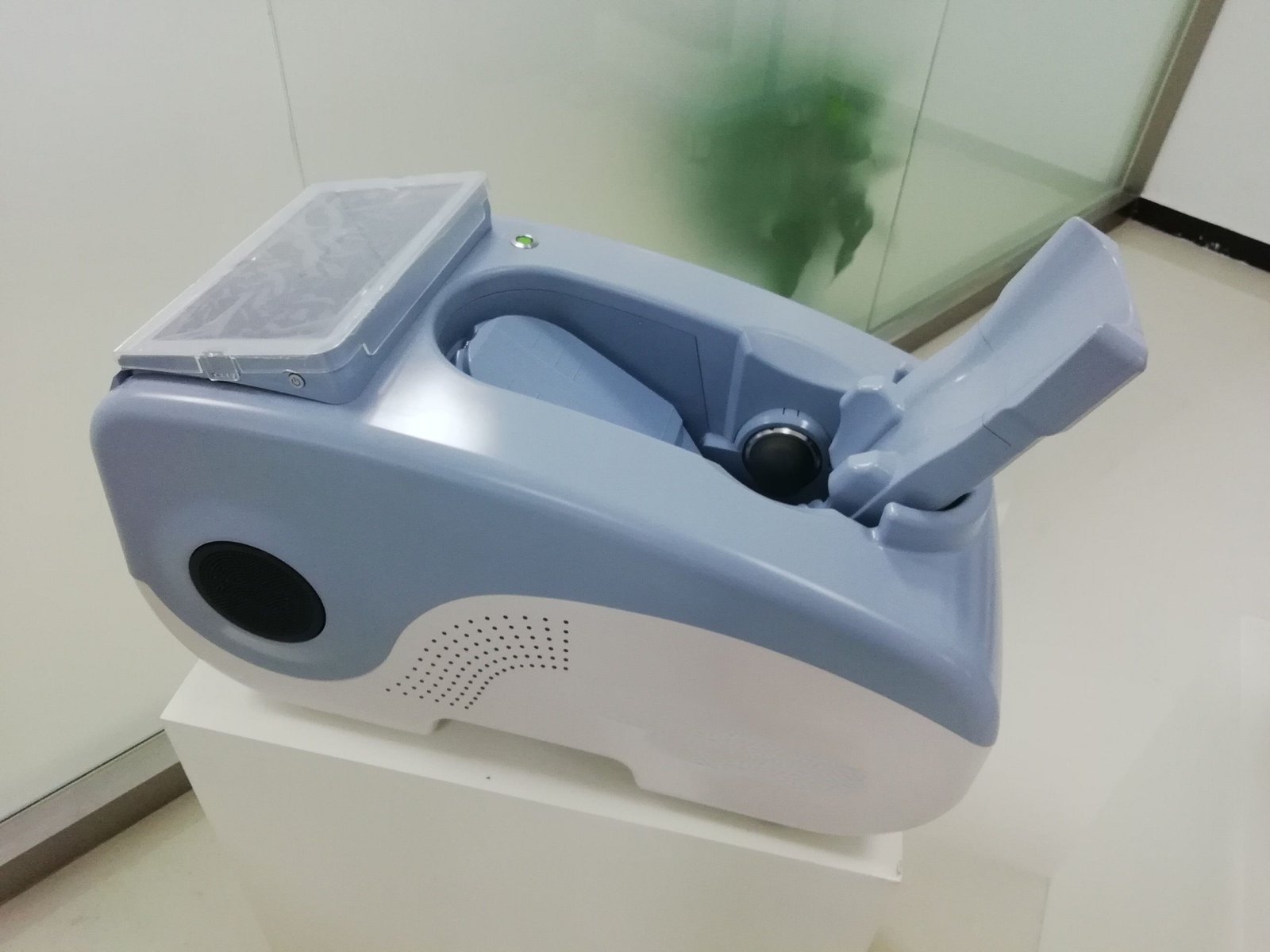

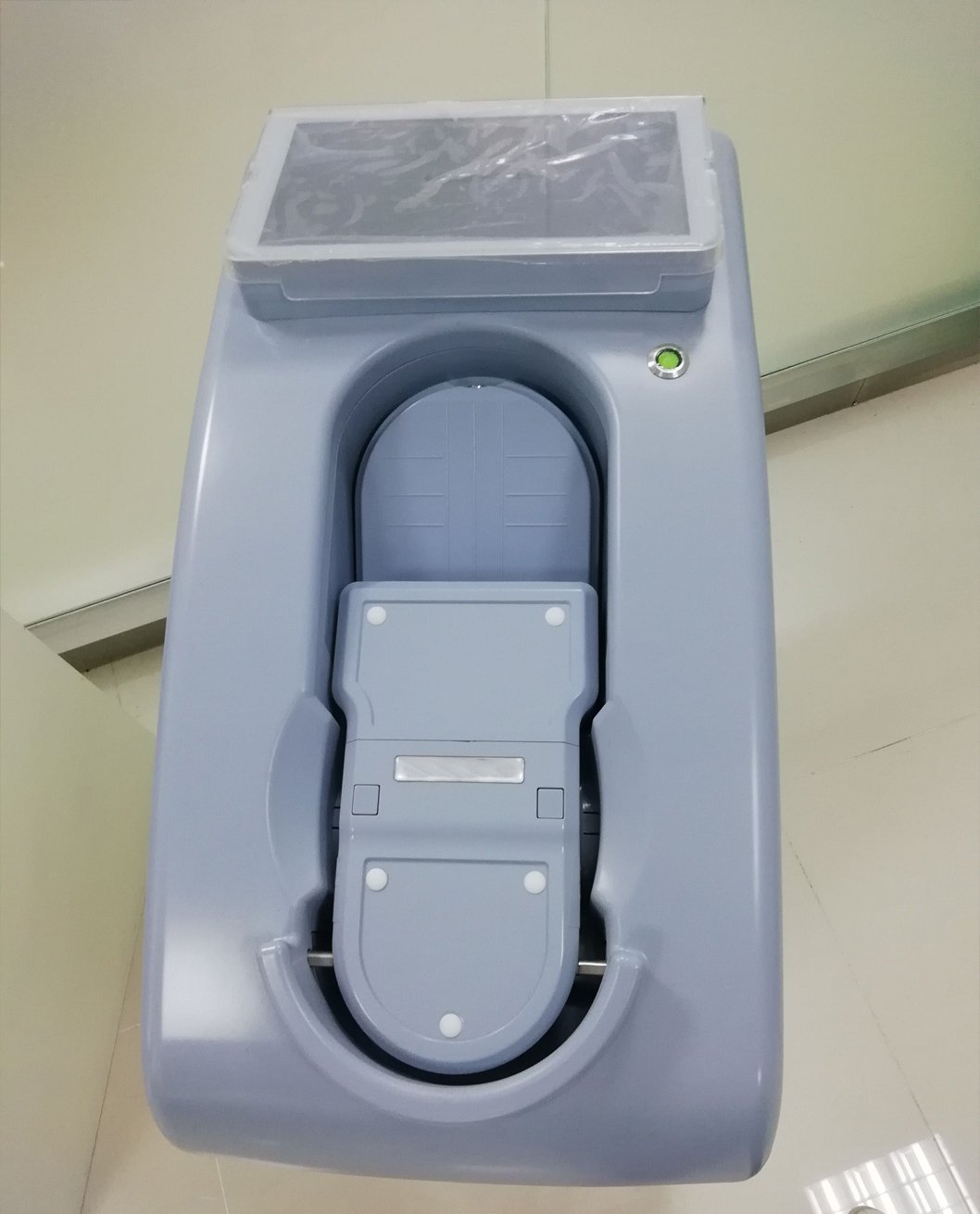

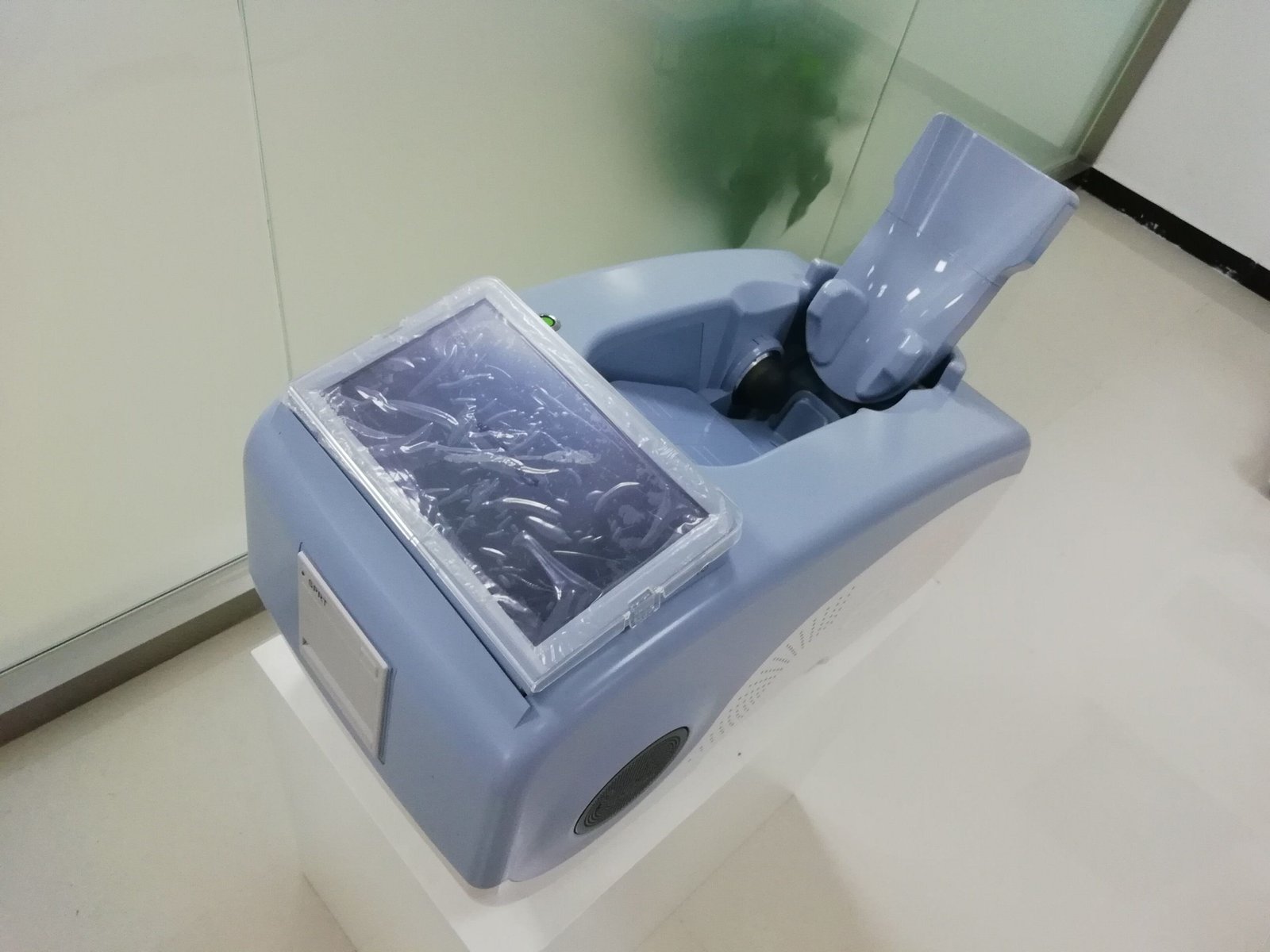

Ultrasound Bone Densitometer NEUBD07
Advanced non-invasive bone density measurement system with integrated 10.1-inch touch screen, automatic calibration, and built-in thermal printer. Delivers accurate results in ≤25 seconds for comprehensive osteoporosis screening and bone health monitoring.
Clinical overview
The NEUBD07 Ultrasound Bone Densitometer represents a paradigm shift in non-invasive bone density assessment, combining advanced ultrasound technology with user-friendly operation in a comprehensive, all-in-one system. This professional-grade device utilizes dry-type measurement technology to assess calcaneal bone density, which accurately reflects overall body bone mineral density. The completely non-invasive measurement process makes it especially suitable for vulnerable populations including pregnant women, children, and elderly patients who require frequent monitoring without radiation exposure concerns.
Designed for versatility and precision, the NEUBD07 integrates measurement hardware, built-in computer system, 10.1-inch touch screen display, and thermal printer into a single compact unit, eliminating the need for external equipment connections. Advanced features including automatic calibration, temperature compensation, and multiple international reference databases provide detailed clinical reference data essential for diagnosing osteoporosis in elderly patients, monitoring bone development in adolescents, and assessing bone health across diverse patient populations. The system delivers accurate results in 25 seconds or less, making it ideal for high-volume screening programs and busy clinical environments.
Key features & surgeon benefits
Rapid 25-Second Assessment
- Complete bone density measurement in ≤25 seconds
- Increases patient throughput in busy clinical settings
- Reduces patient waiting times and improves workflow efficiency
Advanced Dry-Type Ultrasound
- Full dry-type measurement eliminates liquid coupling media
- No temperature control devices required
- Bi-directional ultrasonic transmission for comprehensive data collection
All-In-One System Design
- Integrated computer, 10.1-inch touch screen, and thermal printer
- Compact, space-saving design eliminates external equipment needs
- Network connectivity for HIS/PACS system integration
Comprehensive Diagnostic Parameters
- Calculates BUA, SOS, OI, T-value, Z-value, OPR, and age/adult ratios
- Multi-population reference databases for diverse demographics
- Customizable reports for clinical decision support
Exceptional Measurement Precision
- SOS accuracy ≤±2%; BUA repeatability ≤±5%
- Test repeatability (OPR) ≤±1% for reliable monitoring
- Automatic calibration ensures consistent performance
Non-Invasive, Radiation-Free
- Ultrasound-based measurement with zero ionizing radiation
- Safe for pregnant women, children, and frequent monitoring
- Comfortable oil balloon probe with automatic pressure control
Intelligent System Features
- Automatic calibration using human body simulation module
- Temperature compensation for consistent results
- Automatic probe positioning and optimal signal detection
Immediate Report Generation
- Built-in thermal printer for on-site report output
- Supports external printer options for facility preferences
- Customizable diagnostic information and formatting
Technical specifications
| Indications | Osteoporosis screening, bone development monitoring, endocrine disorder assessment, medication monitoring, post-fracture evaluation, health screening centers |
|---|---|
| Measurement method | Full dry-type ultrasound; bi-directional transmission and reception at calcaneus |
| Probe frequency | 0.5 MHz ± 10% |
| Measurement time | ≤ 25 seconds |
| Diagnostic parameters | BUA, SOS, OI, T-value, Z-value, OPR, adult ratio, age ratio |
| SOS accuracy | ≤ ±2% |
| BUA repeatability | ≤ ±5% |
| Test repeatability (OPR) | ≤ ±1% |
| Ultrasonic output TIS | 2.8 × 10⁻³ mW/cm² |
| Calibration | Automatic using human body simulation module |
| Temperature compensation | Automatic adjustment for ambient temperature variations |
| Display | 10.1-inch integrated touch screen with intuitive interface |
| Computer system | Built-in host supporting Windows XP / 7 / 8 / 10 |
| Printer | Built-in high-speed thermal printer for immediate report output |
| Connectivity | Dual USB interface; VGA, keyboard, mouse ports; network capability with PACS support |
| Reference databases | Built-in databases for Asian, European, Middle Eastern, and African populations |
| Probe system | Oil balloon probe with automatic air pressure control; two auxiliary foot stations |
| Measurement site | Calcaneus (heel) with automatic probe spacing adjustment |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main unit | NEUBD07 integrated bone densitometer with built-in computer, touch screen, and thermal printer | 1 |
| Measurement probe | Oil balloon probe with automatic pressure control system | 1 |
| Foot positioning stations | Auxiliary foot stations for accommodating various foot sizes | 2 |
| Calibration module | Human body simulation module for automatic calibration | 1 |
| Power supply | AC power adapter with appropriate regional voltage specifications | 1 |
| USB cables | Standard USB interface cables for data connectivity | 2 |
| Thermal paper | Thermal printer paper rolls for report output | 5 |
| User documentation | Comprehensive user manual, quick start guide, and training materials | 1 set |
Get in touch for pricing & availability
Contact our sales team to discuss the NEUBD07 Ultrasound Bone Densitometer specifications, pricing, delivery timelines, and customisation options for your facility. We provide comprehensive support including installation, training, and ongoing technical assistance.
