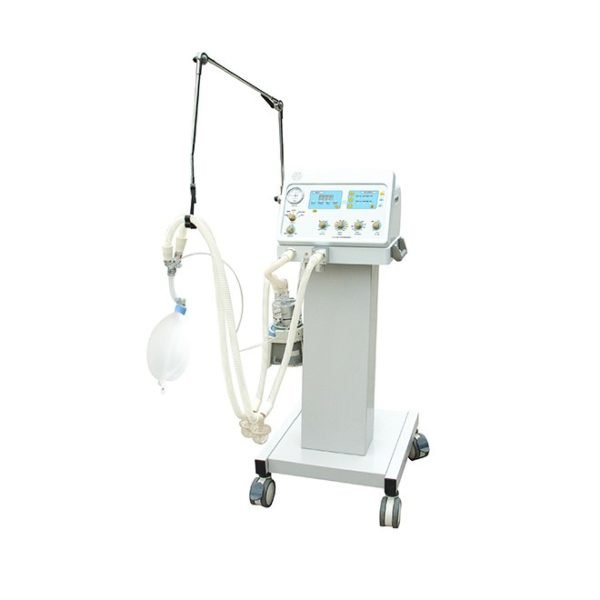

Ventilator Machine NEUVM07
£4,990.00£5,290.00 (-6%)
– Advanced Ventilator Machine NEUVM07 for critical care
– Supports multiple operating modes: CMV, SIGH, A/C, SIMV, MANUAL, PEEP
– Tidal Volume adjustment range: 50~1200ml
– Respiratory Rate settings from 5 to 60 bpm
– FiO2 levels adjustable between 40% and 100%
– User-friendly interface with real-time monitoring features
– Comprehensive alarm system for safety: includes high/low pressure and apnea alerts
– Compact design with dimensions of 550×550×1220mm
– Weighs 32kg, including all accessories for ease of transport
– Reliable performance in diverse environmental conditions (temperature -18~50°C, humidity 15-95%)
Specifications
Relative humidity: 15%~95%
Ambient temperature: -18~ 50°C
Atmospheric pressure:
70kPa~ 110kPa
Gas source: 0.28~0.6Mpa 60I/min
Power: AC220V, 50 Hz
odes CMV, SIGH, A/C, SIMV, MANUAL, PEEP
Tidal Volume 50~1200ml
Respiratory Rate 5~60bpm
FiO2 40%~100%
Trigger -0.5~1kpa
Inspiratory Time 0.5~3S
Max Minute Volume ≥22L/min
PEEP 0, 5 ~20hpa
Airway Pressure -10~100hpa
Over Pressure Relief ≤ 7.2 kpa
Package Dimension 550×550×1220mm
Weight 32kg(Including all the accessories)
| Monitors: | Tidal Volume | Alarms: | High Airway Pressure Alarm |
| Circuit Pressure | Low Airway Pressure Alarm | ||
| Alarm Set | High MIN. Volume Alarm | ||
| MIN. Volume | Low MIN. Volume Alarm | ||
| Breath Rate | High Rate Alarm | ||
| Trigger Level | Apnea Alarm | ||
| Power Failure Alarm | |||
| Low Oxygen Source Alarm |
