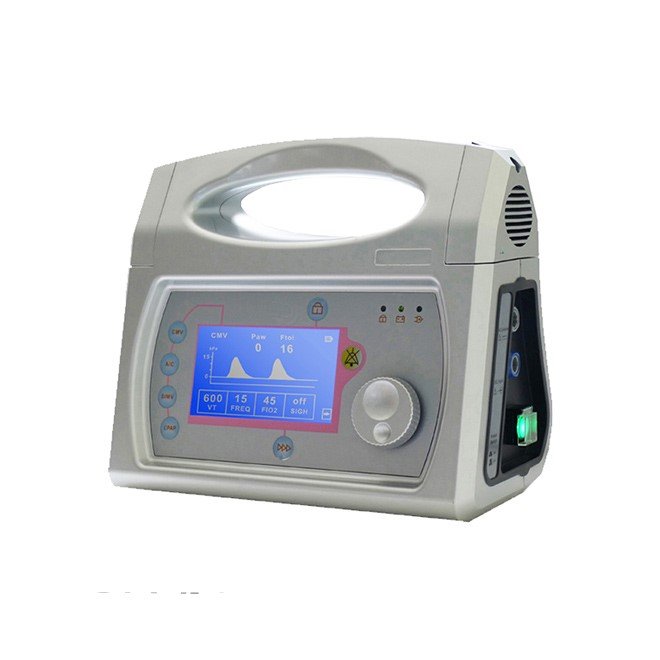

Ventilator NEUVM06
£6,790.00£7,390.00 (-8%)
– High-performance ventilator model NEUVM06
– Operating temperature range: -18 to 50°C
– Relative humidity capability: 15% to 95%
– Multiple ventilation modes: CMV, A/C, SIMV, and CPAP
– Adjustable tidal volume: 50 to 2000 ml
– Respiratory rate settings: 1 to 100 bpm
– FiO2 range: 40% to 100%
– Compact dimensions: 570 x 460 x 250 mm
– Lightweight design: 13 kg including accessories
– Reliable power supply: AC220V, 50 Hz
Specifications
Relative humidity: 15%~95%
Ambient temperature: -18~ 50°C
Atmospheric pressure:
70kPa~ 110kPa
Gas source: 0.28~0.6Mpa 60I/min
Power: AC220V, 50 Hz
Modes CMV, A/C, SIMV, CPAP
Tidal Volume 50~2000ml
Respiratory Rate 1~100bpm
FiO2 40%~100%
Trigger -20~19hpa
Peak pressure 0~60 hPa
Max Minute Volume ≥22L/min
PEEP 0, 5~20hpa Adjustable
PIP 0~60hpa
Over Pressure Relief ≤ 7.2 kpa
Sigh OFF, 10~100 bpc
I :E 2:1~1:4 Adjustable
Package Dimension 570*460*250mm
Weight 13kg(Including all the accessories)
