- Handheld design for easy portability and convenience
- 5" TFT-LCD display with high brightness and clarity
- Capable of detecting multiple animal species including swine, ovine, goats, and canines
- Automatically calculates back-fat and lean percentage in swine
- Offers multiple display modes: B, B+B, B+M, M, 4B
- Long-lasting lithium battery with continuous operation of over 3 hours
- Easy output connectivity: USB 2.0 and video (PAL-D, NTSC)
- Standard configuration includes scanner body, battery, probe, charger, and USG gel
- Optional accessories available, including a waterproof probe and video printer
- Image processing features for enhanced imaging quality and measurement capabilities

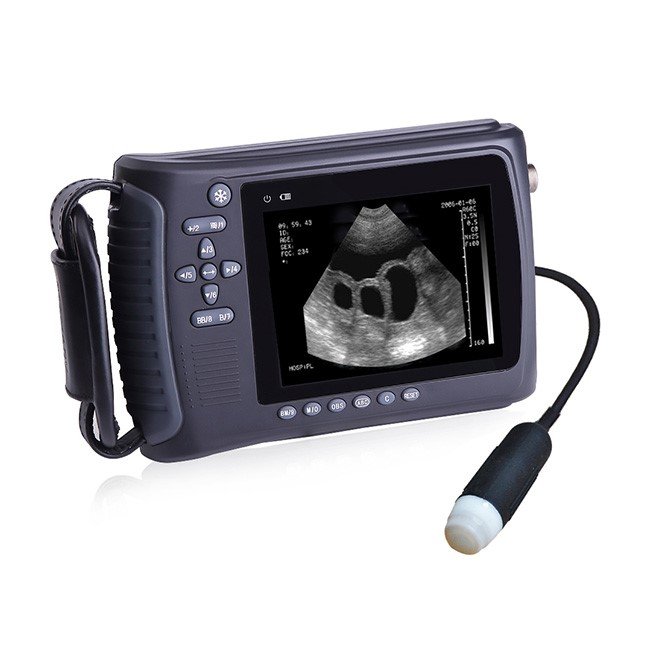

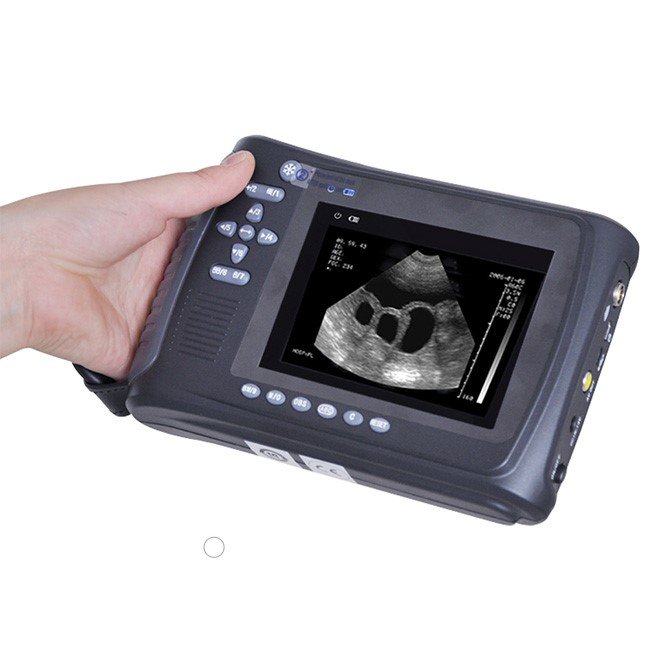

Portable, high-resolution ultrasound imaging for livestock and companion animal diagnostics. The NEUVU21 delivers real-time B-mode imaging with automated body composition analysis, ideal for field and clinical use across swine, ovine, caprine, and canine applications.
The NEUVU21 is a compact, handheld ultrasound scanner engineered for rapid, portable diagnostics in veterinary practice. Its lightweight design and integrated lithium battery enable extended field work—ideal for livestock assessment, breeding evaluation, and clinical imaging in remote or on-farm settings. The 5" high-brightness TFT-LCD display ensures clear image quality in variable lighting conditions.
Unique to the NEUVU21 is its automated back-fat and lean percentage calculation for swine, streamlining production management and carcass quality assessment. Multiple display modes (B, B+B, B+M, M, 4B) and comprehensive measurement tools support diverse diagnostic workflows across species.
| Indications | Swine, ovine, goat, canine, and other species |
|---|---|
| Display | 5.0" TFT-LCD; 256 gray scale |
| Display modes | B, B+B, B+M, M, 4B |
| Scan depth | 120–190 mm (displayed depth 192 mm) |
| Maximum detection depth | ≥140 mm |
| Lateral resolution | ≤4 mm (depth ≤80 mm); ≤5 mm (80 < depth ≤130 mm) |
| Axial resolution | ≤2 mm (depth ≤80 mm) |
| Blind zone | ≤8 mm |
| Geometric precision | Horizontal ≤20 mm; Vertical ≤10 mm |
| Standard probe | 3.5 MHz sector probe |
| Image processing | Histogram, colour encode, gamma, image smoothing |
| Measurements | Distance, circumference, area, volume, heart rate, gestation age |
| Connectivity | USB 2.0; Video output (PAL-D, NTSC) |
| Battery | 2600 mAh lithium-ion; continuous operation ≥3 hours |
| Power supply | AC adapter: 100–110V/240V~, 50–60 Hz, 70 VA |
| Dimensions | 230 mm (L) × 120 mm (W) × 38 mm (H) |
| Weight | 800 g (net) |
| Warranty | 2 Year Manufacturer Warranty |
| Item | Description | Qty |
|---|---|---|
| Scanner Body | NEUVU21 main unit with integrated controls | 1 |
| Li-ion Battery | 2600 mAh rechargeable battery | 1 |
| 3.5 MHz Sector Probe | Standard ultrasound transducer | 1 |
| Charger with Wires | AC adapter and charging cable set | 1 |
| Wrap Bag | Protective carrying bag | 1 |
| USG Gel | Ultrasound coupling gel bottle | 1 |
| Transportation Case | Hard-shell protective case | 1 |
| User Manual | Instruction and operation guide | 1 |
Contact our sales team to discuss the NEUVU21 handheld ultrasound scanner, optional accessories, and customisation options. We offer competitive pricing, fast delivery, and comprehensive post-sale support.
Available on request
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
