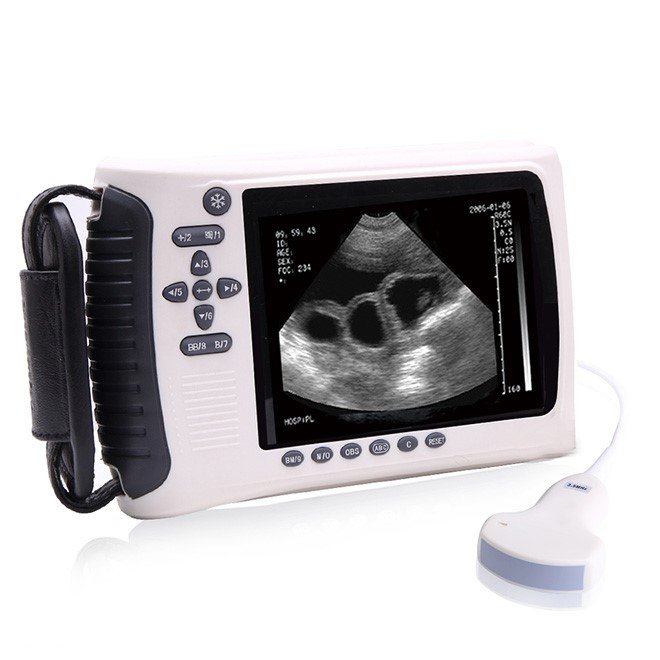

Veterinary Handheld Ultrasound Scanner NEUVU22
£1,995.00£2,190.00 (-9%)
– Handheld veterinary ultrasound scanner for various animals including bovine, equine, canine, and more.
– 5″ FTT-LED display with high brightness and contrast for clear imaging.
– Portable and lightweight design for easy transportation and field use.
– Supports OB measurements, including EDD and GA calculations for multiple species.
– Automatically calculates back-fat and lean percentage of swine.
– 128 frames permanent storage with 256 frames cine loop for image playback.
– Outputs via USB2.0 and video formats (PAL-D, NTSC).
– Includes a rechargeable 2600mAh lithium battery for 180+ minutes of operation.
– Additional features: adjustable focus positions and various measurement functions.
– Comes with standard accessories including probes, charger, and transportation case.
Applications:
Ovine, Goat, Bovine, Equine, Swine, Alpaca, Feline, Canine, Rabbit, Fish, Snake and etc.
Features :
5″ FTT-LED, wide visual, high brightness, high contrast, image clear and exquisite.
Hand-held design, smart and light, easy to carry, convenient for detection.
OB measurement: EDD and GA for Bovine, equine, swine, alpaca, ovine, goat, canine, feline, rabbit.
Automatically calculate back-fat and lean percentage of swine.
128 frames permanent storage, 256 frames cine loop.
Output: USB2.0, video (PAL-D, NTSC), connecting to video recorder and ultrasonic workstation.
Easy to print out all kinds of detection images and reports.
Optional mouse to operate easier.
Adopted AC and DC to supply power, lithium battery capacity 2600mA which can make machine work more than 180 minutes.
Specifications:
Detect Depth(mm): ≥140
Blind zone(mm): ≤3
Monitor size: 5 inch
Display mode: B, B+B, B+M, M, 4B
Image gray scale: 256
Image storage: 128
Cine loop: ≥400 frame
Scan depth: 120mm-220mm
Image flip: up/down, left/right
Focus position: Adjustable
Posture mark: 15
Image process: Histogram, color encode, gama, image smooth
Probe frequency: Adjustable ( 3 point each probe )
Frame correction: Adjustable
Measurement: distance, circumference, heart rate, EDD, area, volume, GA and etc.
Notation: date, time, name, sex, age, full screen words edit and etc.
Output report: regular
Output: USB2.0, VIDEO( PALD, NTSC)
Charging method: adapter, battery
Adapter rating: 100-240V～, 50-60Hz, 70VA
Battery: 2600mAh, continuous work: ≥3 hours
Machine dimension: 230mm(L)x120mm(W)x38mm(H)
Net weight: 700g

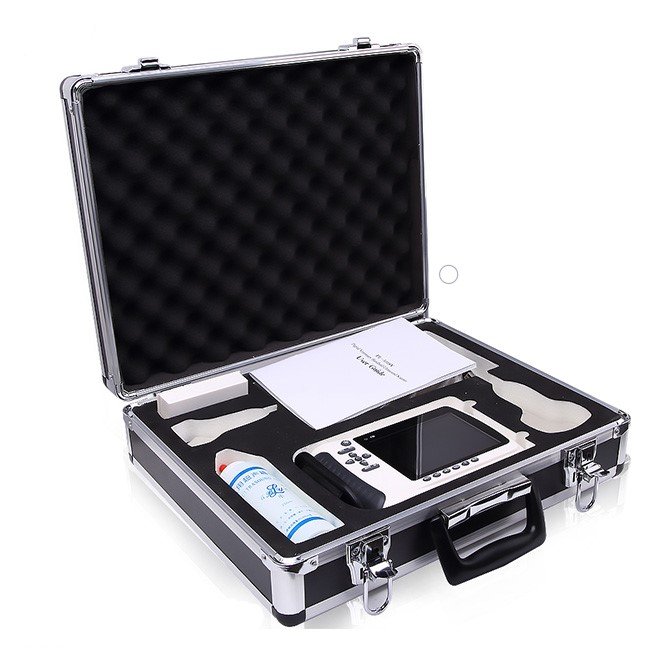

Standard Configuration:
◦ Scanner Body: 1pc
◦ Li-ion Battery: 1pc
◦ 3.5MHz Convex Probe: 1pc
◦ Charger with a Set of Wires: 1set
◦ Wrap Bag: 1pc
◦ CD: 1pc
◦ Bottle of USG gel: 1pc
◦ Transportation Case: 1pc
◦ User Manual: 1pc
Optional:
◦ 5.0MHz Micro-convex Probe
◦ 6.5MHz Rectal Probe
◦ 6.5Mhz Rectal Probe with Rod
◦ 7.5MHz Linear Probe
◦ Video Printer
◦ Li-ion Battery
◦ Rod of Rectal Probe
◦ Car Charger
◦ Charging Adaptation Wire(containing power cord)
