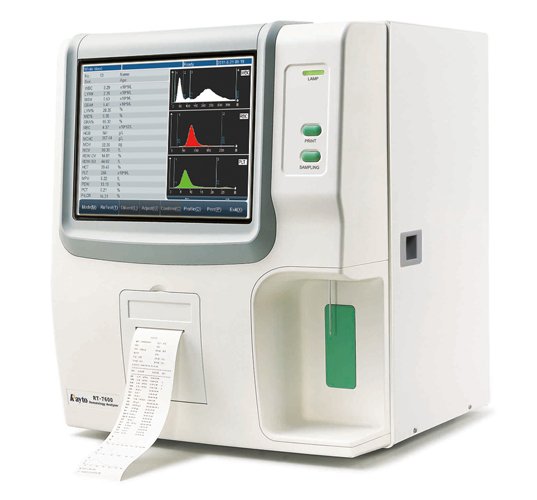

- Auto Hematology Analyzer RT-7600V for Veterinary applications
- Analyzes 20 parameters and provides 3 histograms
- 3-part differentiation of white blood cells (WBC)
- Capable of processing 60 samples per hour
- Features a 10.4” TFT colorful touch screen display
- Stores up to 50,000 sample results with histograms
- Multi-language support available upon request
- Suitable for various animals: cats, dogs, rabbits, pigs, goats, horses, monkeys, plus 4 user-defined settings
- Error message alarms for enhanced operational reliability
- Interfaces: RS-232, USB, LAN, with optional external printer support
Advanced automated hematology analysis for veterinary diagnostics. Delivers 20 parameters with 3-part WBC differentiation and real-time histograms. High-throughput capacity of 60 samples per hour with intuitive 10.4" touchscreen interface and comprehensive data storage for up to 50,000 results.
The RT-7600V is a fully automated hematology analyzer engineered specifically for veterinary laboratory environments. It combines electrical resistance counting technology with advanced data processing to deliver rapid, accurate blood cell analysis across multiple animal species. The system processes up to 60 samples per hour, making it ideal for high-volume diagnostic facilities, emergency clinics, and research institutions.
With support for cats, dogs, rabbits, pigs, goats, horses, monkeys, and four user-defined animal profiles, the RT-7600V adapts to diverse veterinary practice requirements. The 10.4-inch TFT color touchscreen provides intuitive navigation, while comprehensive data storage and multi-language support enhance operational efficiency and international deployment capability.
| Indications | Veterinary hematology analysis for cats, dogs, rabbits, pigs, goats, horses, monkeys, and user-defined species |
|---|---|
| Parameters | WBC, LYM#, MID#, GRA#, LYM%, MID%, GRA%, RBC, HGB, MCHC, MCH, MCV, RDW-CV, RDW-SD, HCT, PLT, MPV, PDW, PCT, P-LCR plus histograms for WBC, RBC, PLT |
| Counting Principle | Electrical resistance for WBC, RBC, and PLT |
| Sample Volume | Whole blood: 9.8 µL; Prediluted: 20 µL |
| Throughput | 60 samples per hour |
| Display | 10.4" TFT color LCD with touchscreen |
| Interfaces | RS-232, USB, LAN, keyboard, mouse; optional external printer |
| Operating Environment | Temperature: 15–35°C; Humidity: ≤80% |
| Power Requirement | AC 110–110V/220V, 50/60 Hz |
| Dimensions | 430 × 363 × 307 mm (L × W × H) |
| Weight | 18 kg |
| Warranty | 2 Year Manufacturer Warranty |
| Item | Description | Qty |
|---|---|---|
| Main Analyzer Unit | RT-7600V Hematology Analyzer with 10.4" touchscreen display | 1 |
| Blood Control | Factory-supplied quality control material | 1 |
| Calibrator | Factory-supplied calibration standard | 1 |
| Power Adapter | External AC adapter (110–110V/220V, 50/60 Hz) | 1 |
| Interface Cables | RS-232, USB, LAN connectivity cables | 1 set |
| Thermal Printer | 55 mm width paper thermal printer (optional external printer support) | Optional |
| Documentation | User manual, technical specifications, warranty certificate | 1 set |
Contact our sales team to discuss pricing, delivery timelines, and customisation options for the RT-7600V. We provide comprehensive support and can arrange demonstrations at your facility.
Available on request
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
The preset animal profiles handled feline and canine samples accurately and the differentials matched our manual films well. Turnaround is fast enough for in-consult decision making.
Dr. Imogen Radcliffe, MDVerified buyerDec 7, 2025
The parameters are reproducible across repeat runs and the histograms are clean for our common species. Maintenance prompts are clear and daily cleaning is straightforward.
Naomi Frost, MLSVerified buyerOct 19, 2024
Platelet clumping in feline samples is always tricky, but the analyser flagged suspect counts sensibly for review. Reagent handling is clean and start-up is quick.
Dr. Stefan Kowalski, MDJul 6, 2025

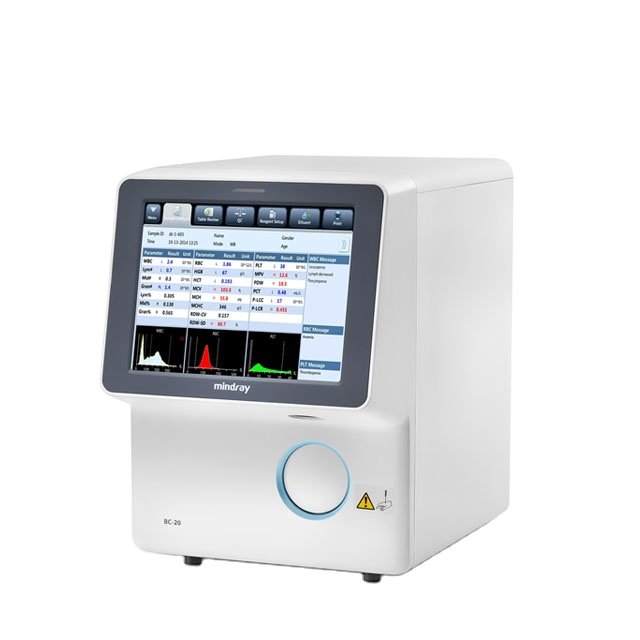

- Auto Hematology Analyzer BC-20 by Mindray - Performs CBC with 3-DIFF, analyzing 20 parameters - High throughput of 40 samples per hour - User-friendly 10.4-inch TFT touch screen - Open vial sampling capability for convenience - Large storage capacity of up to 100,000 samples - Includes original QC, calibrators, and reagents - Supports whole blood and predilute modes - Multiple interfaces including USB ports and network access - Compact design with a wide operating environment range
- Accurate and reliable results with 21 parameters and histograms for RBC, WBC, and PLT. - Utilizes advanced technologies like digital filtering and blood cell-overlap calibration. - High-quality syringe pump for precise quantitative analysis. - Easy maintenance with a zap and backflush cleaning system. - Large storage capacity of 15,000 results and 3 histograms. - User-friendly design with cyanide-free hemolytic reagent for HGB detection. - 10.1-inch color LCD touch screen for easy operation. - Automatic sampling, mixing, and analysis for efficient performance. - Multiple input/output options including USB and RS232 interfaces. - Complies with environmental standards and safety regulations.

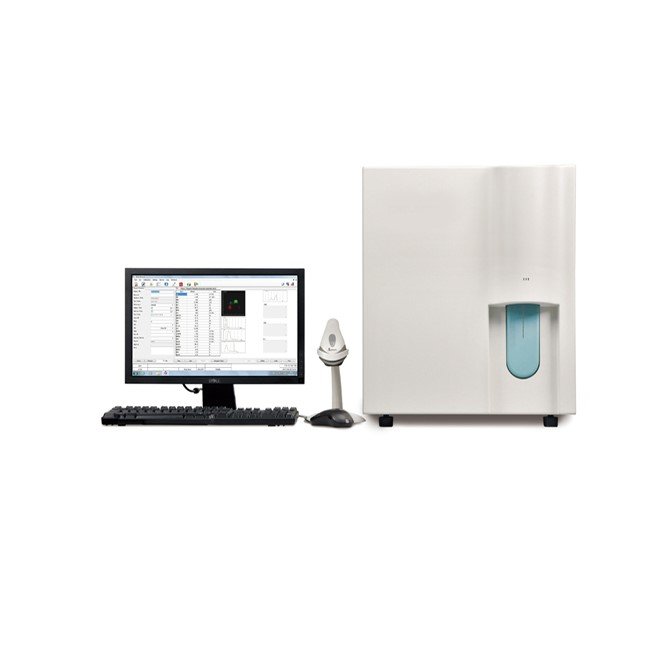

- Advanced Automatic Hematology Analyzer BF-6500 for accurate blood analysis - Tests various parameters: WBC, RBC, HGB, HCT, MCV, and more - High throughput: 60 samples per hour in CBC mode - Environmentally friendly with cyanide-free reagents - Supports whole blood and pre-diluted blood samples - User-defined report formats and multiple test modes - Compact design with a user-friendly interface - Expandable with USB and internet ports - Auto-rinsing feature to reduce cross-contamination - Efficient use of only 20µL whole blood for reliable results
- Advanced Automatic Hematology Analyzer for precise blood analysis - Tests up to 22 parameters including WBC, RBC, HGB, and more - High throughput of 60 samples per hour in both CBC and CBC+DIFF modes - Utilizes semiconductor laser flow cytometry and safe cyanide-free reagents - User-friendly interface with multiple report formats and customizable settings - Supports automatic sampling and emergency STAT loading for urgent testing - Economic operation requiring only 20 uL of whole blood for reliable results - Robust data storage for up to 100,000 patient results - Flexible connectivity with USB and internet ports for enhanced functionality - Designed for ease of maintenance with an auto-rinsing feature to reduce carry-over ratio

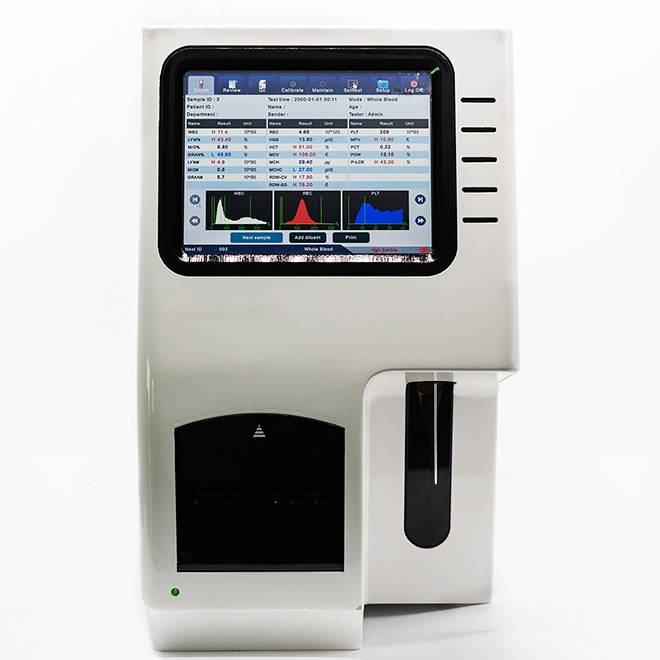

- Advanced Auto 3 Part Hematology Analyzer - Test principle: Impedance method for WBC, RBC, and PLT; Spectrophotometry for HGB - High throughput of 60 samples per hour - Displays results on an 8.4-inch color touch screen - Supports multiple species including Canine, Feline, Equine, and more - Compact design with a net weight of 25KG - User-friendly interface with USB, keyboard, and serial port connectivity - Operational temperature range of 10-35°C with <85% humidity - Power adaptable from AC100V-240V - Requires minimal sample volume: 9.8µl for whole blood analysis
