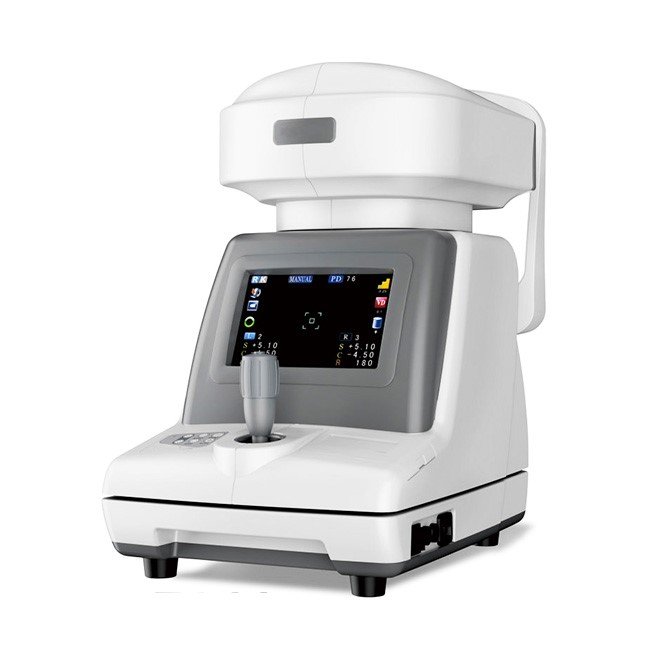

- Advanced Auto Kerato-Refractometer model NEUFA65
- Measurement range: Sphere -20 to +20D, Cylinder -8 to +8D
- Precise axis measurement from 0 to 180° with 1° increment
- Pupil distance (PD) range: 45 to 88mm
- Keratometry: Radius of curvature from 5.0 to 10mm
- Corneal power measurement: 33.75 to 67.50D
- Storage capacity: Up to 10 measurements per eye
- Features a 7” TFT LCD display for easy reading
- Includes a thermal printer for instant reporting
- Compact dimensions: MSLFA65 at 478mm×268mm×472mm
Advanced automated refraction and keratometry system delivering precise refractive measurements with integrated thermal printing. The NEUFA65 combines comprehensive measurement capabilities with an intuitive 7" TFT LCD interface, enabling rapid patient assessment and instant reporting in busy optometric and ophthalmology practices.
The NEUFA65 is a fully automated kerato-refractometer designed for rapid, objective measurement of refractive error and corneal parameters. The system employs advanced optical technology to deliver consistent, reproducible results across a comprehensive measurement range, supporting both routine screening and detailed clinical assessment in primary care and specialist settings.
With integrated data storage for up to 10 measurements per eye and instant thermal printing capability, the NEUFA65 streamlines patient workflow and documentation. The large 7" TFT LCD display ensures clear visibility of results, while the compact footprint accommodates space-constrained clinical environments without compromising functionality or ease of use.
| Indications | Refractive error assessment, keratometry, corneal power measurement, pupil distance determination |
|---|---|
| Sphere range | −20 to +20D (VD=12mm, 0.125D step) |
| Cylinder range | −8 to +8D (0.125D step) |
| Axis range | 0–180° (1° step) |
| Pupil distance | 45–88mm (1mm step) |
| Vertex distance options | 0mm, 12mm, 13.75mm |
| Minimum pupil size | 2.0mm |
| Keratometry radius | 5.0–10mm (0.01mm increment) |
| Corneal power | 33.75–67.50D (0.12 or 0.25D increment selectable) |
| Corneal astigmatism | 0–8.00D (0.12 or 0.25D increment selectable) |
| Corneal diameter | 2.0–14.0mm (0.1mm increment) |
| Data memory | 10 measurements per right and left eye |
| Display | 7" TFT LCD |
| Printing | Thermal printer |
| Chart system | Follow-up colorful fogging chart |
| Power supply | 110V/220V ±10%, 50/60Hz, 60VA |
| Dimensions (NEUFA65) | 478mm × 268mm × 472mm |
| Dimensions (NEUFA68) | 514mm × 284mm × 465mm |
| Weight | Approximately 15.5kg |
| Warranty | 2 Year Manufacturer Warranty |
| Item | Description | Qty |
|---|---|---|
| Auto Kerato-Refractometer | NEUFA65 main unit with 7" TFT LCD display | 1 |
| Thermal Printer | Integrated thermal printer for instant reporting | 1 |
| Power Cable | 110V/220V ±10%, 50/60Hz supply cable | 1 |
| User Manual | Comprehensive operation and maintenance guide | 1 |
| Thermal Paper Roll | Replacement thermal paper for printer | 2 |
Contact our ophthalmic equipment specialists to discuss the NEUFA65 system, pricing, delivery timelines, and customisation options for your practice or facility.
Available on request
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
