- Advanced Auto Lensmeter with Tilt Color Screen for easy readability
- Measurement range: Sphere 0 to ±25D, Cylinder 0 to ±9.99D
- Accurate axis measurement from 0° to 180° in 1° steps
- Fast measurement speed of just 0.1 seconds
- Compatible with various lens types: soft, hard, single, progressive
- Equipped with a thermal printer for instant results
- Large display options: 7” TFT LCD (MSLJD26A) or 5.6” TFT LCD (MSLJD26B)
- Adjustable PD measurement range: 40 to 90mm in 0.5mm steps
- Compact design with a weight of approximately 5.5KG
- Versatile power supply: 100–240V, 50–60Hz
Advanced automated lensmeter with large tilt color display for precise lens measurement. Fast 0.1-second measurement speed with thermal printer output, compatible with soft, hard, single, and progressive lenses. Ideal for optical laboratories and dispensing practices.

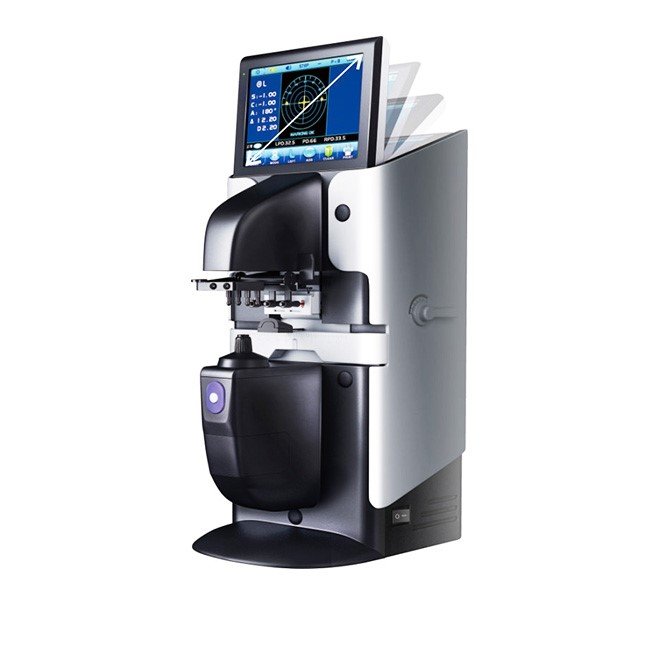

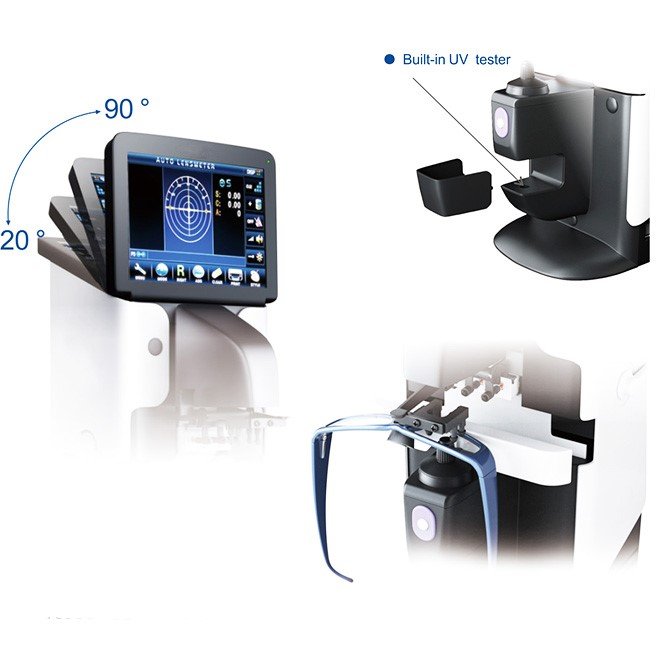

The Auto Lensmeter NEUJD26A is a fully automated optical measurement system designed for high-throughput lens analysis in professional optical environments. With measurement speeds of just 0.1 seconds and a comprehensive measurement range covering sphere, cylinder, axis, add power, and prism values, this device streamlines lens verification and quality control workflows. The large tilt color display (available in 7" or 5.6" formats) ensures operator comfort and readability during extended use, while the integrated thermal printer provides instant hard-copy documentation of all measurements.
The system supports multiple lens types—soft contact lenses, hard contact lenses, single-vision, and progressive lenses—with automatic recognition capability. Adjustable PD measurement (40–90mm in 0.5mm increments) and flexible cylinder/prism measurement modes accommodate diverse clinical and retail requirements. Compact design and universal power supply (100–110V/240V, 50–60Hz) make installation straightforward in any optical facility.
| Indications | Lens power measurement, axis determination, prism measurement, progressive lens analysis, contact lens verification |
|---|---|
| Measurement range — Sphere | 0 to ±25D (0.01/0.12/0.25D step) |
| Measurement range — Cylinder | 0 to ±9.99D (0.01/0.12/0.25D step) |
| Measurement range — Axis | 0° to 180° (1° step) |
| Measurement range — Add | 0 to ±9.99D (0.01/0.12/0.25D step) |
| Measurement range — Prism | 0 to 15△ (0.01/0.12/0.25D step) |
| Lens diameter | Φ20–108mm |
| PD measurement | 40–90mm (0.5mm step) |
| Measurement speed | 0.1 seconds |
| Display options | 7" TFT LCD (MSLJD26A) or 5.6" TFT LCD (MSLJD26B) |
| Printer | Thermal printer |
| Cylinder measurement mode | +, +/−, − |
| Prism measurement mode | X-Y, P-B |
| Contact lens mode | Soft / Hard |
| Measuring mode | Single / Progressive / Automatic recognition |
| Dimensions | 222(D) × 161(W) × 372(H) mm |
| Package dimensions | 515(H) × 320(W) × 390(D) mm |
| Weight | ~5.5 kg |
| Power supply | 100–110V/240V, 50–60Hz |
| Warranty | 2 Year Manufacturer Warranty |
| Item | Description | Qty |
|---|---|---|
| Auto Lensmeter | Main unit with tilt color display and thermal printer | 1 |
| Power cable | Universal AC power supply cable (100–110V/240V, 50–60Hz) | 1 |
| Thermal paper roll | Replacement thermal paper for printer | 1 |
| User manual | Operating instructions and maintenance guide | 1 |
Contact our sales team to discuss display size options, customisation, and delivery timelines. We offer flexible configuration and rapid deployment support.
Available on request
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
