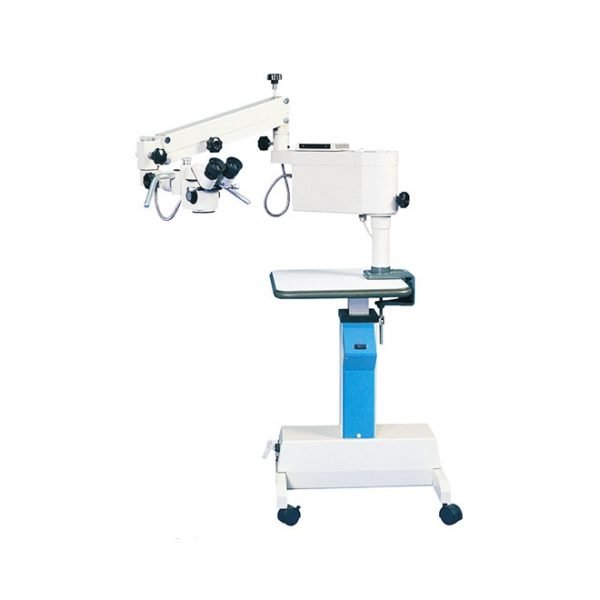

Multi-functional Operation Microscope NEU20P
£3,870.00
– Compact and lightweight design for easy maneuverability
– Features a 3-file zoom system for versatile magnification
– Equipped with a spring balance system for smooth vertical adjustments
– Utilizes multilayer coated lenses for enhanced clarity and durability
– Adaptable for multiple applications including ENT, surgery, and gynecology
– High illumination with a 12 V / 100 W cold reflective medical halogen lamp
– Adjustable eyepiece magnification of 12.5 × with inter pupillary distance settings
– Working distance of 190 mm and multiple magnification options (6X, 10X, 16X)
– Coaxial and surface illumination providing superior light exposure
– Sturdy arm extension radius of 860 mm for extended reach during procedures
Specifications
Features
1, the body is compact and lightweight, with a high degree of flexibility
2, Microscope 3 files zoom
3, are equipped with a spring balance system, the operation microscope can move up and down freely
4, all the lenses using multilayer coating, mold, anti-reflection technology, enhance environmental adaptability
5, optional with different objectives and other components, but also for ENT, surgery, gynecology
Operation Microscope MSL20P Technical Parameters
Eyepiece magnification 12.5 × degree of visual adjustment ± 5 D Inter pupillary distance adjustment range 50 mm ~ 70 mm Objective focal length 200 mm Working distance 190 mm Magnification 6X, 10X, 16X Lighting source 12 V / 100 W, cold reflective Medical halogen lamp illumination Type 6 ° cold light Coaxial illumination Coaxial illumination Surface illumination ≥10000 Lx Arm extension radius 860 mm Vertical adjustment range (ground to large objective) 850 mm ~ 1100 mm 10%, 50Hz / 60Hz Voltage AC 220V / 110V Power 120 VA fuse AC 250V T1.25A, AC 125V T2.5A
