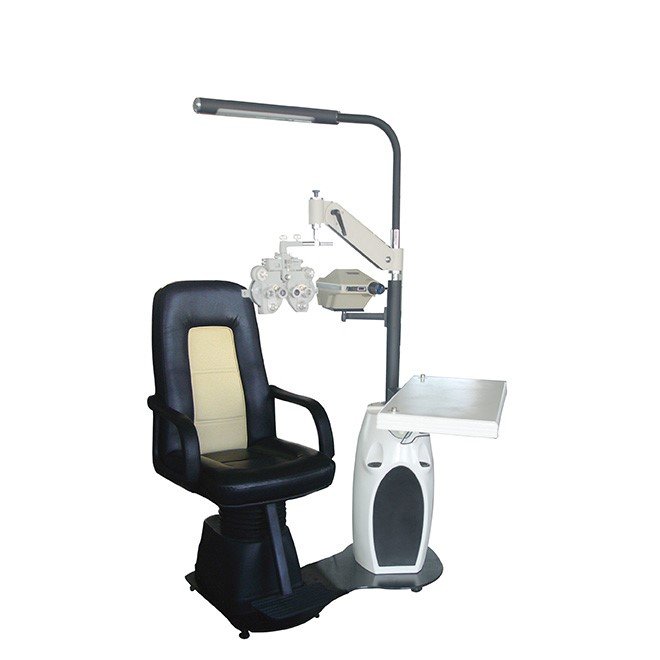

Ophthalmic Refraction Chair Unit TR-510A
£3,950.00
– High-quality Ophthalmic Refraction Chair Unit TR-510A
– Adjustable arm tilting angle of ±30º for customized positioning
– 90º table rotation for optimal patient access
– Slide-board extends up to 500mm for convenience
– Supports a maximum loading capacity of 150KGS
– Height adjustable from 500mm to 700mm for patient comfort
– Robust construction with a total weight of 200Kgs
– Dual power options: 120W, 220V, 50Hz or 110V, 60Hz
– 15W illumination bulb for enhanced visibility during exams
– Spacious table size of 840mm × 405mm for various equipment setups
Ophthalmic Refraction Chair Unit TR-510A
A precision-engineered refraction chair designed for comprehensive ophthalmic examinations. Features adjustable positioning, optimal patient access, and robust construction to support clinical workflows in eye care facilities.
Clinical overview
The TR-510A is a professional-grade ophthalmic refraction chair engineered for precision eye examinations. Its motorized height adjustment and multi-axis positioning enable clinicians to achieve optimal patient ergonomics and examination angles, reducing fatigue and improving diagnostic accuracy across a wide range of refractive procedures.
With robust construction rated for 150 kg patient loading and dual power options (220V 50Hz or 110V 60Hz), the unit integrates seamlessly into modern ophthalmic practices. The 15W illumination system provides enhanced visibility during detailed refraction work, while the 90° table rotation and adjustable arm positioning (±30°) accommodate diverse examination protocols and equipment configurations.
Key features & surgeon benefits
Multi-axis Adjustability
- Arm tilting ±30° for customized patient positioning
- 90° table rotation for optimal access and comfort
- Height range 500–700mm accommodates diverse patient statures
Enhanced Examination Efficiency
- Motorized controls reduce manual adjustment time
- Spacious 840mm × 405mm table supports multiple instrument setups
- 500mm slide-board extension improves accessibility for equipment placement
Robust Construction
- 150 kg maximum loading capacity ensures stability
- 200 kg total weight provides solid foundation
- Professional-grade materials rated for high-volume clinical use
Integrated Illumination
- 15W bulb provides consistent, shadow-free lighting
- Enhanced visibility during detailed refraction procedures
- Supports comprehensive diagnostic eye examinations
Technical specifications
| Indications | Ophthalmic refraction examinations, visual acuity assessment, diagnostic eye care |
|---|---|
| Arm tilting angle | ±30° |
| Table rotation angle | 90° |
| Slide-board extension | 500mm |
| Chair height range | 500–700mm |
| Maximum patient loading | 150 kg |
| Total weight | 200 kg |
| Table size | 840mm × 405mm |
| Power supply | 120W, 220V 50Hz or 110V 60Hz |
| Illumination | 15W bulb |
| Material | Steel frame with upholstered seating |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Refraction Chair Unit | Complete motorized ophthalmic refraction chair with integrated illumination | 1 |
| Control Panel | Motorized height and positioning controls | 1 |
| Illumination Bulb | 15W examination light | 1 |
| Power Cable | Dual voltage compatible (220V/110V) | 1 |
