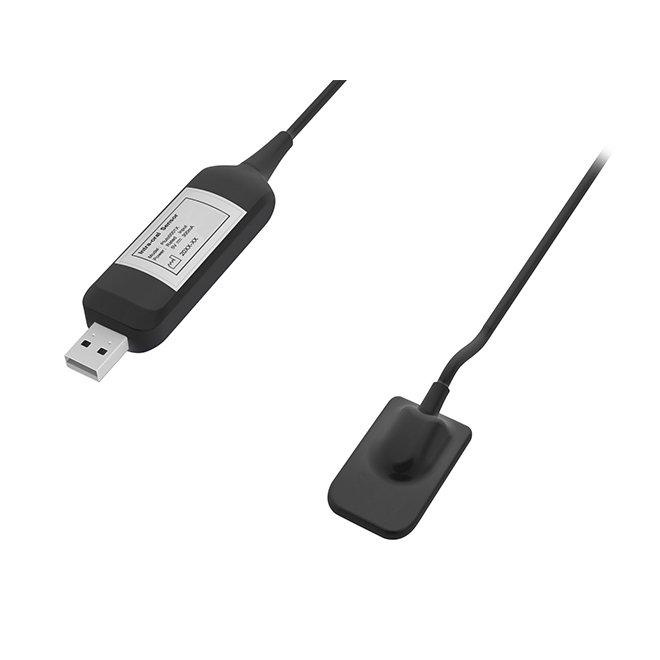

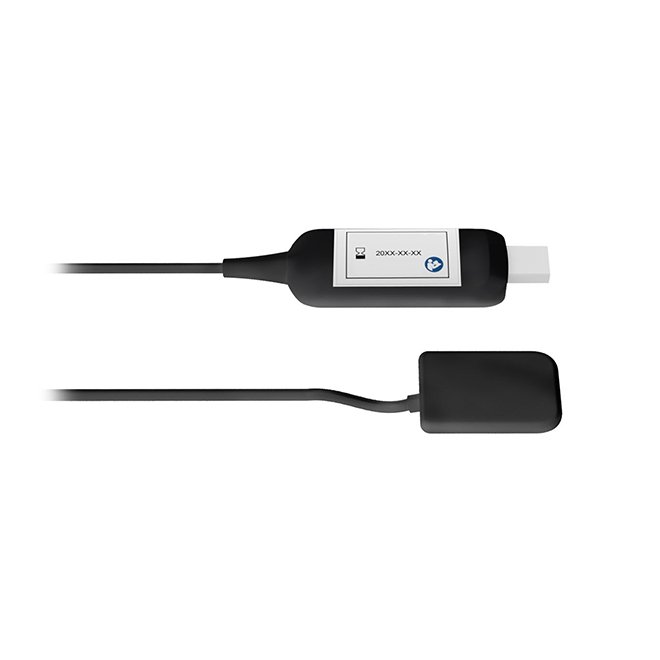

Digital Intra-oral Sensor NEUFP11
£2,541.50£3,590.00 (-29%)
– Advanced APS CMOS technology for high-quality imaging
– Smart AED-Compatible with various X-Ray sources
– Lower dose imaging via direct deposition Csl
– Fast USB 2.0 direct connection for easy integration
– Ergonomic slim design with rounded corners
– High reliability with IP68 ingress protection rating
– Compact dimensions: 25.0×38.5×4.5 mm
– Supports TWAIN protocol for versatile software compatibility
– Operating system compatible with Windows 7 and above (32/64 bit)
– Available with cable lengths of 3m or 5m for flexibility
Digital Intra-oral Sensor NEUFP11
Advanced APS CMOS intra-oral sensor delivering high-resolution diagnostic imaging with lower radiation dose. Smart AED-compatible technology integrates seamlessly with existing X-ray systems, featuring ergonomic design and robust IP68 protection for clinical reliability.
Clinical overview
The NEUFP11 represents a significant advancement in intra-oral digital radiography, combining advanced APS CMOS sensor technology with direct-deposition CsI:Tl scintillator coating to deliver superior image quality at reduced radiation exposure. The sensor’s Smart AED (Automatic Exposure Detection) compatibility ensures seamless integration with a wide range of X-ray sources, allowing clinicians to maintain consistent diagnostic protocols across equipment platforms.
With its compact ergonomic design, rounded corners, and optimized thumb positioning, the NEUFP11 enhances patient comfort and clinician control during intra-oral placement. The IP68 ingress protection rating provides exceptional durability for high-volume clinical environments, supporting aggressive disinfection protocols without compromising sensor integrity. Fast USB 2.0 connectivity and TWAIN protocol support enable rapid image acquisition and flexible software integration across modern dental practice management systems.
Key features & surgeon benefits
Superior Diagnostic Resolution
- APS CMOS technology with 16-bit gray level (65,535 grades)
- Spatial resolution: 14–20 lp/mm depending on sensitivity mode
- Direct-deposition CsI:Tl scintillator for enhanced contrast
Seamless Integration & Speed
- Smart AED-compatible with multiple X-ray sources
- USB 2.0 direct connection for instant image transfer
- TWAIN protocol support for broad software compatibility
Lower Dose, Higher Value
- Direct deposition CsI reduces radiation dose requirements
- Dual-size options optimize cost per procedure
- IP68 durability extends sensor lifespan and ROI
Clinician & Patient Comfort
- Slim, rounded-corner design minimizes intra-oral bulk
- Optimized thumb position for secure, stable placement
- Flexible cable lengths (3 m or 5 m) for positioning freedom
Technical specifications
| Indications | Intra-oral dental radiography, caries detection, periodontal assessment, diagnostic imaging |
|---|---|
| Sizes / range | Option A: 20×30 mm active area, 1.5 M pixel matrix (1000×1500); Option B: 26×36 mm active area, 2.34 M pixel matrix (1300×1800) |
| Sensor technology | APS CMOS with directly deposited CsI:Tl scintillator |
| Pixel pitch | 20 µm |
| Spatial resolution | Theoretical: 25 lp/mm; Actual: 14–16 lp/mm (High Sensitivity), 18–20 lp/mm (High Resolution) |
| Gray level | 16-bit, 65,535 grades |
| Exposure mode | Smart AED (Automatic Exposure Detection) |
| Mechanical dimensions | 25.0×38.5×4.5 mm (Option A) or 31.0×40.0×4.5 mm (Option B) |
| Ingress protection | IP68 for soak disinfection |
| Cable length | Standard 3 m; Optional 5 m |
| Connectivity | USB 2.0 direct connection |
| Software protocol | TWAIN protocol support |
| Operating system | Windows 7 and above (32-bit and 64-bit) |
| Color | Black |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Digital Intra-oral Sensor | NEUFP11 with APS CMOS technology, CsI:Tl scintillator, IP68 rated | 1 |
| USB Cable | USB 2.0 direct connection cable (3 m standard or 5 m optional) | 1 |
| Driver Software | TWAIN-compatible driver for Windows 7 and above (32/64-bit) | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss sensor specifications, integration requirements, and volume pricing. We provide comprehensive support for equipment selection, installation, and ongoing clinical optimization.
