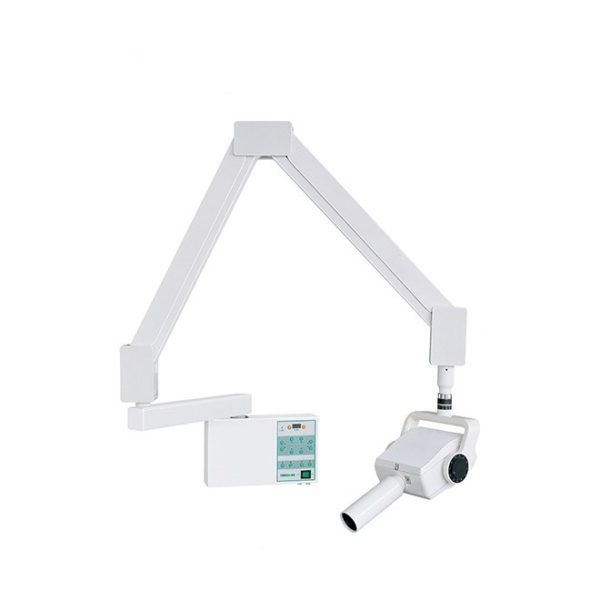

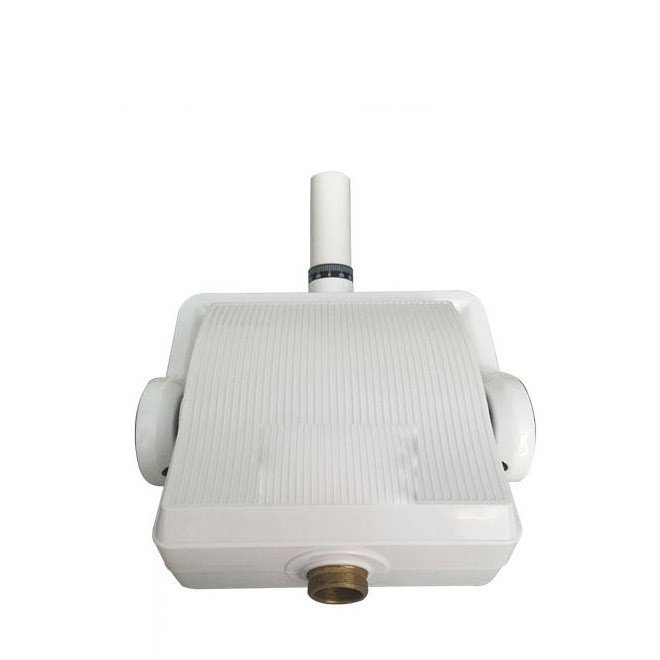

Wall-Mounted Intra-Oral Dental X-Ray Machine NEUDX02
– Wall-mounted design for efficient space utilization in dental clinics.
– Class I electro medical device for safe operation.
– Operates on AC power supply: 220V±10%, 50Hz, 1KVA.
– Tube voltage of 60kVp for high-quality imaging.
– Adjustable exposure time ranging from 0.1 to 4 seconds.
– Features a total weight of 35kg for stability.
– Integrated structure combining x-ray generator, central controller, and frame.
– Digital circuit for precise exposure time control.
– Lower radiation levels than national protection standards ensuring patient safety.
– Ideal for use in synthesis hospitals and dental specialty clinics.
Specifications
Wall Mounted Dental X Ray Machine MSLDX02
MSLDX02 dental x-ray unit is an essential diagnostic equipment for dentist with features as following: a). Simple structure: The x-ray generator, central controller and unit frame are integrated into one unit. b). Good protection: The radiation is much lower than national protecting standard. c). Digital circuit: The digital circuit makes exposure time accurately.
|
X-ray tube
|
|
|
Top working voltage
|
70KV
|
|
Focus value
|
0.8
|
|
Target angle
|
12°
|
|
Current
|
2.5 A
|
|
Voltage
|
5±0.5V
|
|
Working frequency
|
50~60HZ
|
|
Perspective loading
|
210W
|
|
Anode thermal capacity
|
7KJ
|
|
X-ray Generator
|
|
|
Focus value
|
0.8mm
|
|
Total Al equivalent
|
2mmAL
|
|
Tube voltage
|
70KV
|
|
Tube current
|
8mA
|
