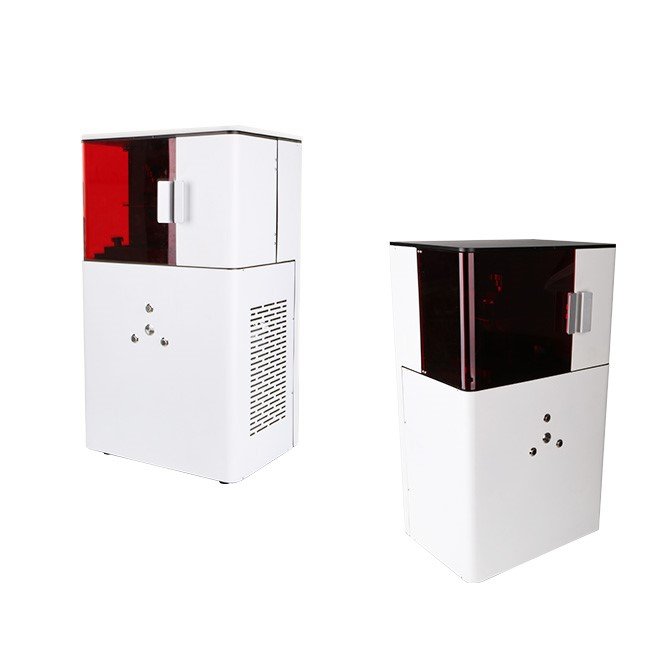

Stereolithography 3D Printer NEU3D01
– Advanced Stereolithography 3D Printer NEU3D01 utilizes DLP technology for precise printing.
– Industrial-grade quality ensures high print accuracy with a smooth surface finish.
– Quick forming speed of 2 to 5 seconds per layer for efficient model creation.
– Features an adjustable build size of 80mm x 60mm x 160mm to accommodate various models.
– Layer thickness ranges from 0.01mm to 0.1mm, with maximum accuracy of 0.005mm.
– Compatible with both Photosensitive and Casting Resins in multiple colors.
– Simple PC connection for easy data input in STL format.
– Operates on Windows with a wide voltage range (100-240V) for versatility.
– Lightweight design at under 15kgs for easy transport and setup.
– Ideal for precision and small model printing with a high degree of quality assurance.
Stereolithography 3D Printer NEU3D01
Advanced DLP-based stereolithography system delivering industrial-grade precision for dental, medical, and precision manufacturing applications. Achieve layer thicknesses as fine as 0.01mm with maximum accuracy of 0.005mm, enabling detailed model reproduction with smooth, delicate surface finishes.
Clinical overview
The NEU3D01 stereolithography printer employs advanced Digital Light Processing (DLP) technology to deliver precision 3D printing for dental, surgical, and medical device applications. With an industrial-grade projector light source and high-precision Z-axis jacking system, this device produces models with exceptional accuracy and surface quality. The system is particularly suited for creating detailed dental models, surgical guides, casting patterns, and prototype components where dimensional precision and surface finish are critical.
Operating with layer thicknesses ranging from 0.01mm to 0.1mm and achieving maximum accuracy of 0.005mm, the NEU3D01 captures fine anatomical details and complex geometries with consistency across the entire build platform. The adjustable build size of 80mm × 60mm × 160mm accommodates a wide range of model sizes, while rapid forming speeds of 2–5 seconds per layer ensure efficient production cycles. Compatible with both photosensitive and casting resins in multiple colors, the system offers flexibility for diverse clinical and manufacturing workflows.
Key features & surgeon benefits
Exceptional Accuracy & Detail
- Maximum accuracy of 0.005mm with layer thickness control from 0.01–0.1mm
- XY accuracy of 0.078mm ensures consistent dimensional fidelity
- Captures fine anatomical details and complex geometries reliably
Fast, Efficient Production
- Rapid forming speed of 2–5 seconds per layer accelerates model creation
- Simple PC connection with STL format data input for straightforward operation
- Windows-compatible software reduces training and integration complexity
Industrial-Grade Surface Finish
- Smooth, delicate surface finish with high degree of quality assurance
- Consistent print accuracy across entire build platform
- Ideal for precision and small model printing applications
Flexible Materials & Portability
- Compatible with photosensitive and casting resins in green, red, and yellow
- Lightweight design under 15kg enables easy transport and setup
- Adjustable voltage range 100–240V supports global deployment
Technical specifications
| Molding Technology | Digital Light Processing (DLP) |
|---|---|
| Light Source | Industrial Projector (405nm wavelength) |
| Build Size | 80mm × 60mm × 160mm |
| Product Size | 360mm × 270mm × 610mm |
| Forming Speed | 2–5 seconds per layer |
| Layer Thickness | 0.01–0.1mm (maximum accuracy 0.005mm) |
| XY Accuracy | 0.078mm (varies with build size) |
| Z-Axis System | Imported guide rail + high-precision screw rod |
| Data Input Format | STL |
| Printing Materials | Photosensitive Resin & Casting Resin |
| Resin Colors | Green, Red, Yellow |
| Printing Method | Direct PC connection |
| Operating System | Windows |
| Working Temperature | 10–38°C |
| Voltage | 100–240V, 50–60Hz, 10A |
| Machine Weight | Less than 15kg |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| NEU3D01 Printer Unit | Complete stereolithography 3D printer with DLP technology, build platform, and Z-axis system | 1 |
| Power Cable | Universal voltage-compatible power supply (100–240V) | 1 |
| USB/Data Cable | PC connection cable for STL file transfer | 1 |
| Software License | Windows-compatible printing software with user documentation | 1 |
| Quick Start Guide | Installation and operation manual | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss your precision 3D printing requirements, request detailed specifications, or arrange a product demonstration. We provide comprehensive support for system integration, material selection, and workflow optimization.
