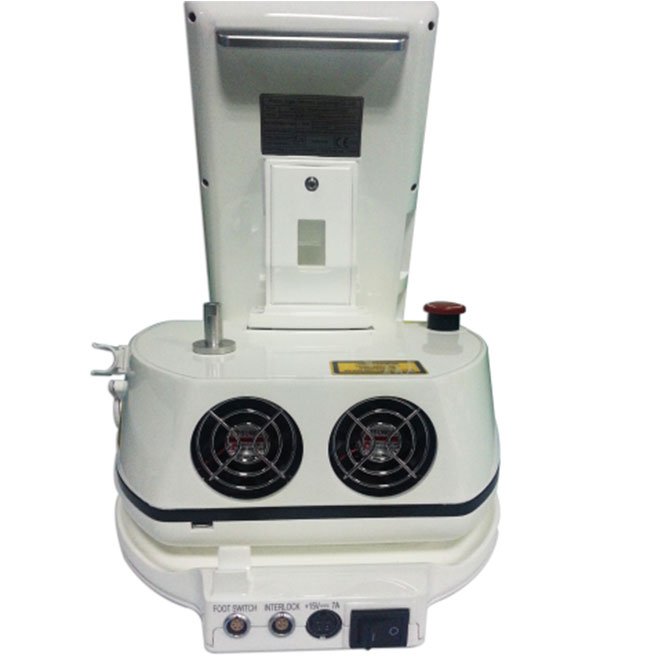

Total Dental Care Diode Laser Machine NEUDLS01
£5,091.50£6,590.00 (-23%)
– Advanced Total Dental Care Diode Laser Machine NEUDLS01
– Semiconductor laser with a wavelength of 980nm/940nm±10nm
– Output power ranges from 0.1W to 10W
– Multiple operation modes: Continuous Wave (CW), Single, Repeat
– Adjustable pulse width from 1ms to 1000ms
– Features a user-friendly color LCD touch screen interface
– Compact dimensions of 265 mm x 200 mm x 210 mm and lightweight at 3 kg
– Air cooling system for optimal performance
– IPX1 waterproof level; footswitch rated at IPX8 for enhanced durability
– Safety classified as ClassⅠType B for reliable operation
Total Dental Care Diode Laser Machine NEUDLS01
Advanced 980nm/940nm semiconductor diode laser engineered for comprehensive dental applications. Delivers 0.1W to 10W output with multiple operation modes, intuitive color LCD touch interface, and compact design for seamless clinical integration.
Clinical overview
The NEUDLS01 is a state-of-the-art semiconductor diode laser system designed to meet the full spectrum of dental care requirements. Operating at dual wavelengths (980nm and 940nm), this Class 4 laser delivers precise, controlled energy for soft tissue ablation, hemostasis, and therapeutic applications. The adjustable power output (0.1W–10W) and flexible pulse modes (Continuous Wave, Single, Repeat) enable clinicians to tailor treatment parameters to individual patient anatomy and pathology, ensuring optimal clinical outcomes across diverse dental specialties.
With its compact footprint (265 × 200 × 210 mm) and lightweight design (3 kg), the NEUDLS01 integrates seamlessly into existing dental operatory workflows. The user-friendly color LCD touch screen interface simplifies parameter selection and real-time monitoring, while the integrated 650nm aiming beam ensures precise targeting. Enhanced safety features—including Class I Type B classification, IPX1 main unit protection, and IPX8-rated footswitch—provide reliable, durable performance in demanding clinical environments.
Key features & surgeon benefits
Dual-Wavelength Precision
- 980nm/940nm±10nm semiconductor laser for optimal tissue interaction
- Wavelength selection enables application-specific treatment protocols
- Proven absorption in hemoglobin and water for superior hemostasis and ablation
Intuitive Operation & Control
- Color LCD touch screen interface for rapid parameter adjustment
- Multiple operation modes (CW, Single, Repeat) adapt to clinical requirements
- Adjustable pulse width (1ms–1000ms) enables fine-tuned energy delivery
Cost-Effective Ownership
- Compact, lightweight design reduces operatory space requirements
- Air cooling system minimizes maintenance and operational costs
- Durable construction with 2-year manufacturer warranty and lifetime support
Flexible Integration
- SMA 905 fiber connector supports approved delivery systems (≥200µm core)
- Numerical aperture range (NA = 0.22–0.48) accommodates diverse fiber optics
- OEM and white-label configurations available for equipment manufacturers
Technical specifications
| Laser Type | Semiconductor diode laser |
|---|---|
| Wavelength | 980nm/940nm±10nm |
| Output Power | 0.1W–10W (adjustable) |
| Operation Modes | Continuous Wave (CW), Single, Repeat |
| Pulse Width | 1ms–1000ms or continuous |
| Aiming Beam | 650nm±10nm diode laser, 4mW max, adjustable brightness |
| Fiber Delivery System | SMA 905 connector; core size ≥200µm; NA = 0.22–0.48 |
| Laser Classification | Class 4 |
| Safety Classification | Class I Type B |
| Interface | Color LCD touch screen |
| Cooling System | Air cooling |
| Power Supply | Input: 100–240Vac, 47–63Hz, 2.0A; Output: 15V, 7A |
| Dimensions | 265mm (H) × 200mm (W) × 210mm (D) |
| Weight | 3 kg |
| Operating Temperature | 10°C–40°C (recommended 10–35°C for optimal heat dissipation) |
| Storage/Transport Temperature | −10°C to +50°C |
| Operating Humidity | 30%–60% |
| Storage/Transport Humidity | 10%–80% |
| Waterproof Rating (Main Unit) | IPX1 |
| Waterproof Rating (Footswitch) | IPX8 |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main Laser Unit | NEUDLS01 semiconductor diode laser console with color LCD touch screen interface | 1 |
| Power Supply Module | Model WDY-15007000; 100–240Vac input, 15V/7A output | 1 |
| Fiber Optic Delivery System | SMA 905 connector; approved fiber with ≥200µm core; NA 0.22–0.48 | 1 |
| Footswitch | IPX8-rated wireless/wired footswitch for hands-free operation | 1 |
| Aiming Beam Module | 650nm±10nm diode laser, 4mW max, adjustable brightness | Built-in |
| User Manual & Documentation | Multilingual operation guide, safety protocols, and maintenance instructions | 1 |
Get in touch for pricing & availability
Contact our dental equipment specialists to discuss system configuration, clinical training, and delivery timelines. We offer flexible purchasing options and comprehensive post-sale support.
